CORNER GUARDS

PROTECT THE MOST VULNERABLE AREAS OF INTERNAL WALLS

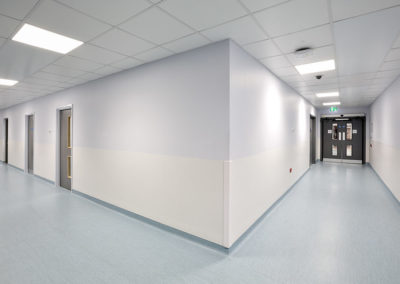

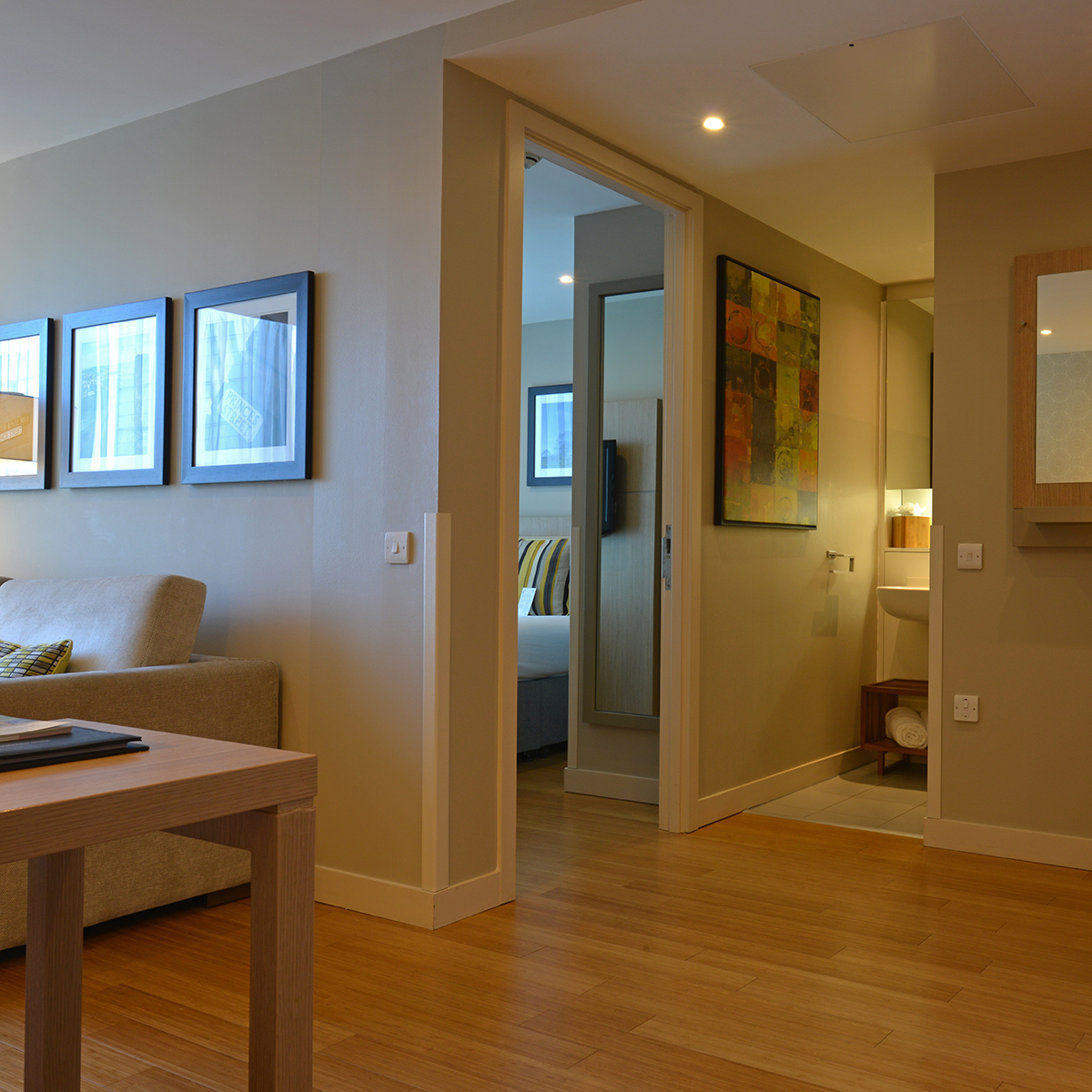

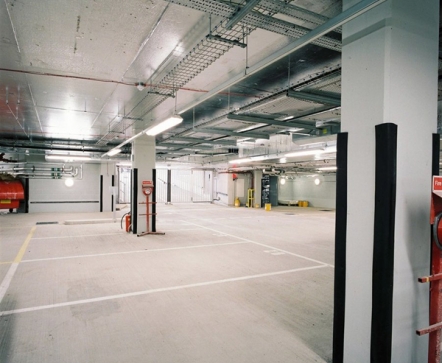

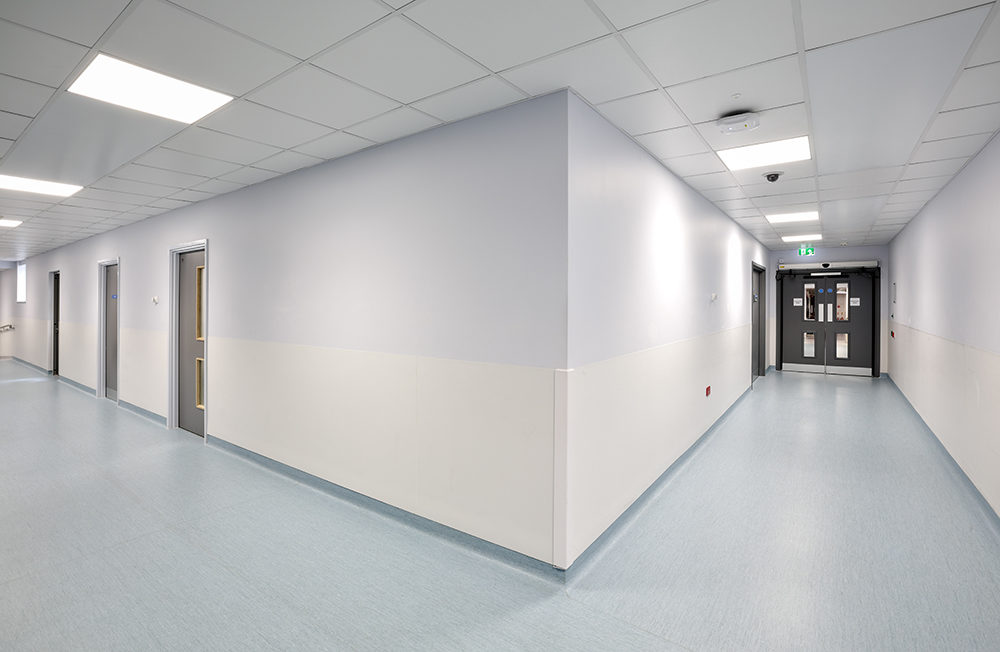

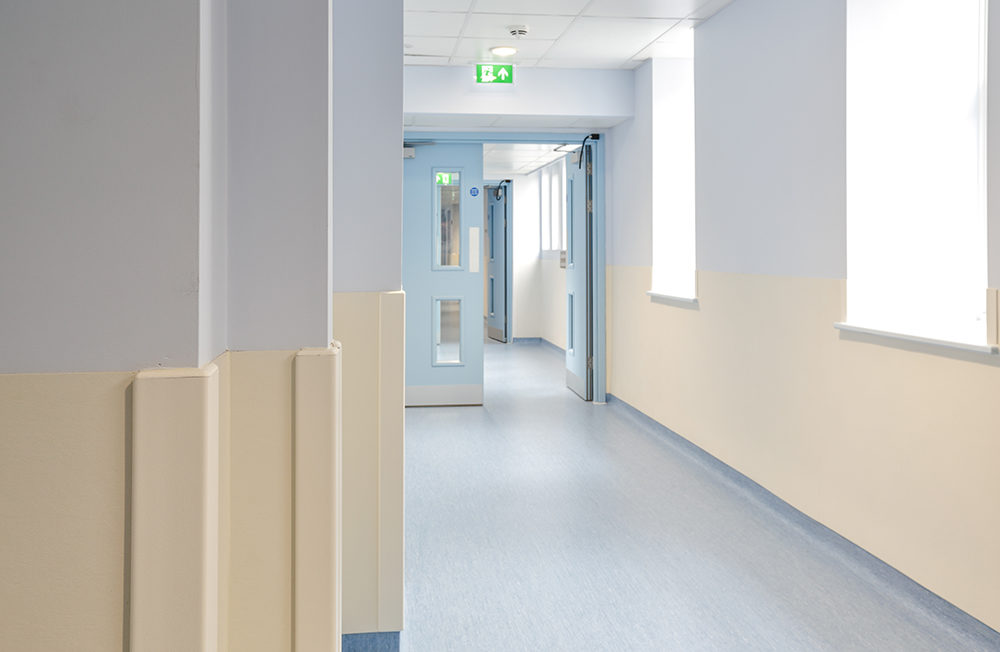

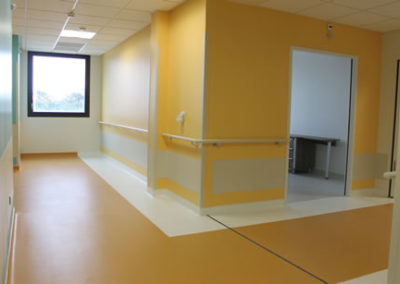

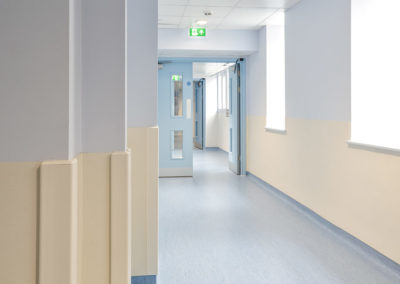

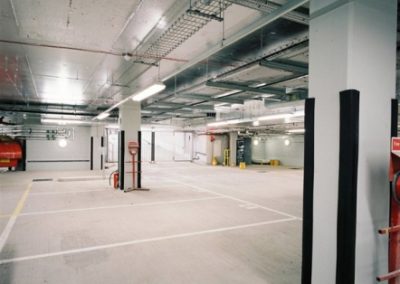

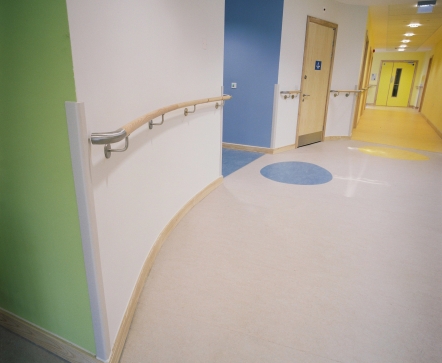

Wall impact frequently occurs on external corners within a building. Suitable corner protection helps to prevent damage to the most vulnerable part of internal walls. CS corner guards are available in a range of heights and performance levels, with models to suit 90° and 135° corners. Irregular angles can be accommodated, with rubber and stainless steel options also available. The range includes models to suit all budgets & design requirements.

CORNER GUARDS

PROTECT THE MOST VULNERABLE AREAS OF INTERNAL WALLS

Wall impact frequently occurs on external corners within a building. Suitable corner protection helps to prevent damage to the most vulnerable part of internal walls. CS corner guards are available in a range of heights and performance levels, with models to suit 90° and 135° corners. Irregular angles can be accommodated, with rubber and stainless steel options also available. The range includes models to suit all budgets & design requirements.

.



BrochuresColours

ENQUIRE ABOUT THIS PRODUCT

INSPIRATION GALLERY
Corner Guards



CHOOSE A TYPE OF CORNER GUARD:



SURFACE MOUNTED CORNER GUARDS

Protect corners from damage & reduce maintenance costs!

CUSTOM SOLUTIONS TO SUIT PROJECT REQUIREMENTS:

Easy Installation

A collection of easy to install corner guards, from mechanically fixed solutions to stick on options.

PRODUCTS

Surface Mounted Corner Guards

SM Series Standard Corner Guard

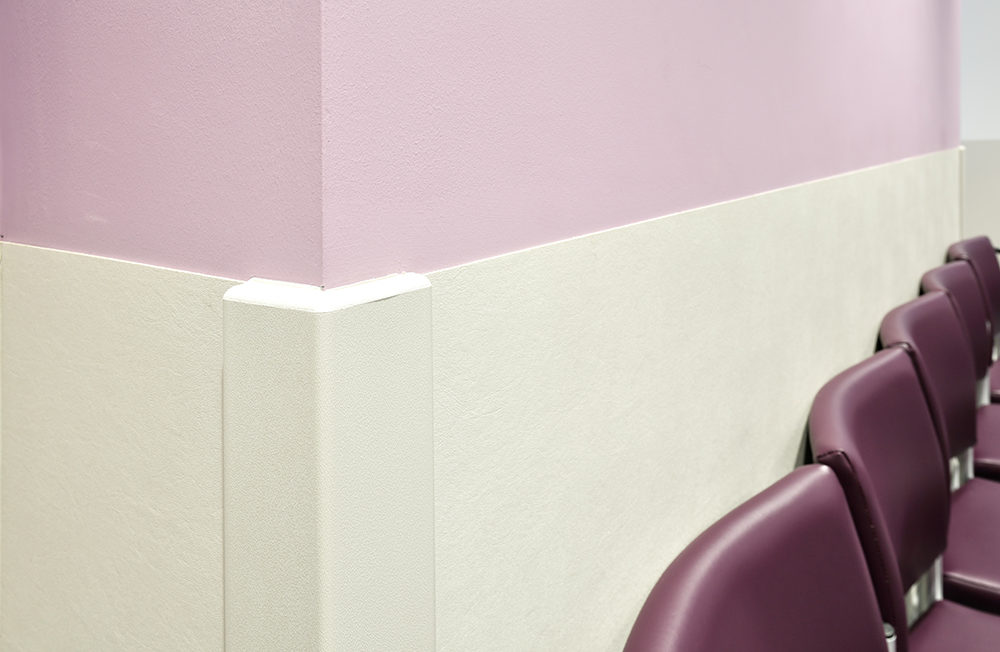

The original “shock absorbing” standard corner guard prevents unsightly damaged corners. The SM-20N (6.4mm radius) and SM-10N (25.5mm radius) are 77mm corner guards with snap on covers. Optional horizontal reveals are available for SM-20N.

SM-20MN Corner Guard for 135° Angle

This 77mm corner guard is used for 135° corner conditions, other angles available. The snap on cover is attached to a two piece retainer. Top and bottom end caps are included.

SSM Series 6.4mm Radius and Bullnose Corner Guards

The SSM-20N and SSM-10N are 6.4mm radius and bullnose corner guards with snap on covers. The SSM-25N (6.4mm) is supplied with (2) SSM-20Ns and a sheet backer cut to size. Optional horizontal reveals are available for SSM-20N & SSM-25N.

VA Series Lost Cost Corner Guard

These lower cost corner guards are made from Acrovyn and they don’t utilize a retainer. Available in several widths, these guards are available in all Acrovyn solid colours and adhere to the wall with self-adhesive tape.

LG Series Polycarbonate Corner Guard

Durable, scratch resistant polycarbonate corner guards provide facilities with unobtrusive corner protection. Clear guards in six widths mount to corners using chrome-plated screws.

LG Series Supporting Documents

Not Available at Present

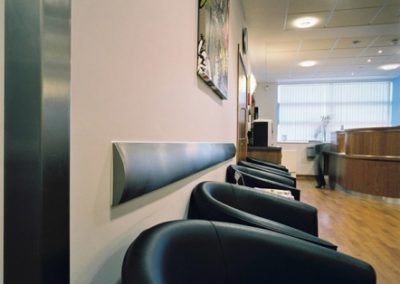

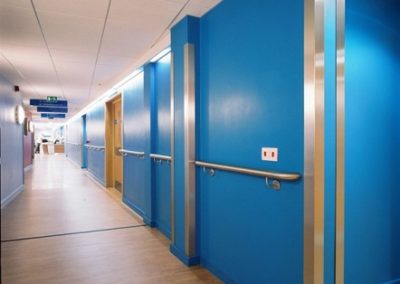

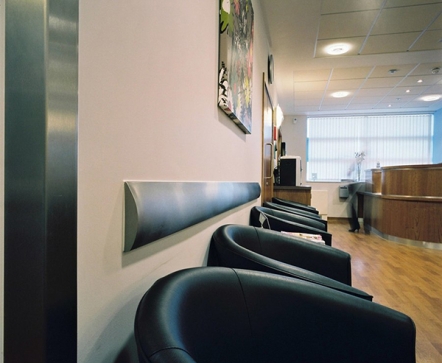

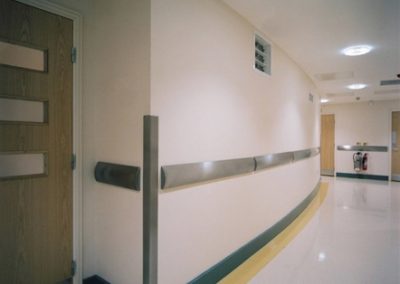

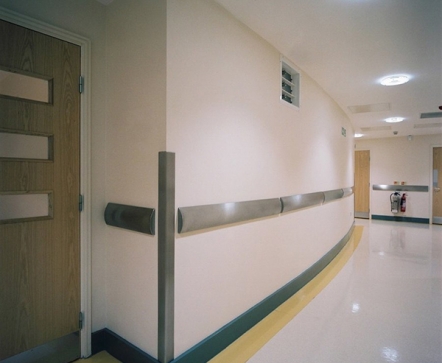

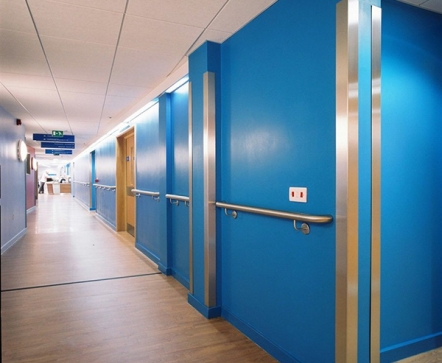

CO/SCO Series Rugged Stainless Steel Corner Guards

Rugged stainless steel corner guards can be used in all types of buildings. Ours are 304 stainless alloy with satin finish. CO-8 has 89mm legs (custom sizes available). Specify SCO-8 for end wall conditions. 8 powder coat finishes available. Try the LG series if you are looking for a clear corner guard.

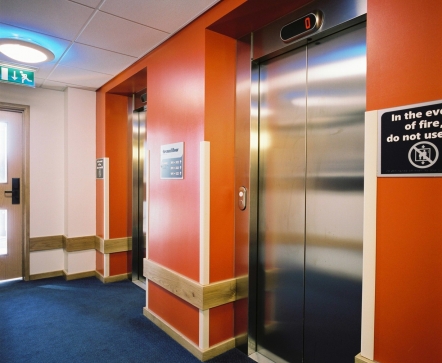

SMWS-20 Square Nose Wood/Stainless Corner Guard

Square nose wood/stainless corner guard. The SMWS-20 corner guard features a 45mm x 45mm recessed stainless steel insert in the 70mm x 70mm wood guard. Stainless steel caps are standard. Optional wood caps available. 8 powder coat finishes available for steel components.

SMWS-10 Square Nose Wood/Stainless Bullnose Corner Guard

Our Wood and Stainless bullnose corner guard. The SMWS-10 corner guard features a 25.5mm  x 25.5mm recessed stainless steel guard in the 70mm x 70mm wood guard. Stainless steel caps are standard. Optional wood caps available. 8 powder coat finishes available for steel components.

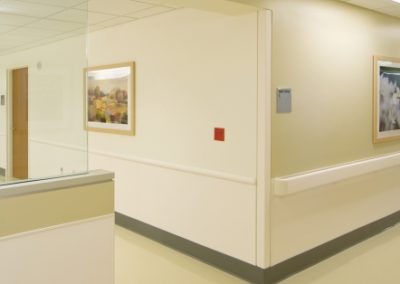

FLUSH MOUNTED CORNER GUARDS

‘Built-in’ to sit flush with the wall surface!

CUSTOM SOLUTIONS TO SUIT PROJECT REQUIREMENTS:

Designed to Give a 'Built-in' Appearance

Flush mounted corner guards are generally installed in new construction environments to give a ‘built-in’ appearance, with protection being mounted flush to the wall.

PRODUCTS

Flush Mounted Corner Guards

FS-20N Flush Corner Guard

The FS-20N flush corner guard offer designers a 77mm sharp nose custom “built-in” appearance that is completely flush to the wall surface. The retainers attach directly to the drywall and are feathered in to achieve a flush appearance.

SFS-20N Corner Protection in New Environments

The SFS-20N (6.4mm radius) corner guards feature 51mm legs that are perceptible when installed, but provides serious corner protection in new construction environments.

SFS-10N Corner Protection in New Environments

The SFS-10N (32mm) corner guard features 51mm legs that are imperceptible when installed, but provides serious corner protection in new construction environments.

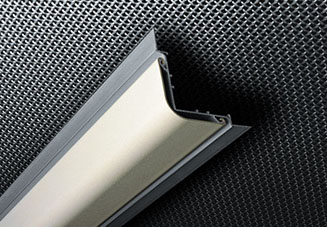

FS-10N Bullnose Corner Guard

The FS-10N bullnose corner guard offer designers a 77mm bullnose custom “built-in” appearance that is completely flush to the wall surface. The retainers attach directly to the drywall and are feathered in to achieve a flush appearance.

FSC-25N Custom Flush Mounted Corner Guard

height : 400pxThis custom flush mounted corner guard is designed for custom corner/wall conditions. The FSC-25N can be manufactured in virtually any width to meet the finished wall’s dimensions.

ACROVYN CHAMELEON SIMULATED PATTERNS

Wood Grain and Metal Effects

Download the ACROVYN® Brochures
