REGUPOL CARGO MAT 9510®

Ideal for Heavy Weight Cargo
and/or Cargo with Stain-Susceptible Surfaces

DESIGNED TO AVOID COLOUR TRANSFER ONTO STAIN-SUSCEPTIBLE SURFACES DURING CONSIGNMENTS WHERE VULNERABLE GOODS COME INTO DIRECT CONTACT WITH ANTI-SLIP MATS.

ENQUIRE ABOUT THIS PRODUCT

REGUPOL cargo mat 9510®

Avoids Colour Transfer onto Stain-Susceptible Surfaces

Suitable for loads of up to 350 t/m², REGUPOL cargo mat 9510® is heavier duty than 7210®.   Beyond its impressive load bearing capacity, REGUPOL cargo mat 9510® has another defining attribute that sets it apart: it is designed to avoid the risk of black discolouration when stain-sensitive surfaces come into contact with the mat.  In other words, 9510® offers an ideal alternative to black rubber mats if they are inappropriate for the consigned goods.  So it’s not exclusively for heavy loads, it can also be used for light to medium weight loads if discolouration is the main concern.

This mat’s impressive lab tested value of 0.97 μ (coefficient of friction), is more than 50% greater than the benchmark figure of 0.6 μ (according to VDI guideline 2700, part 15).

Maximum Loading
  • 350 t/m² = 3.50 N/mm² when 8 mm thick

 CALCULATE LOAD SAFETY

Material
  • Material: butyl rubber
  • Colour: multi-coloured
Coefficient of Friction

Lab tested value 0.97 μ
Adjusted value in acc. with VDI 2700 – part 14, 0.92 μ
Value calculated in practice 0.6 µ in acc. with VDI 2700 – part 15

Formats

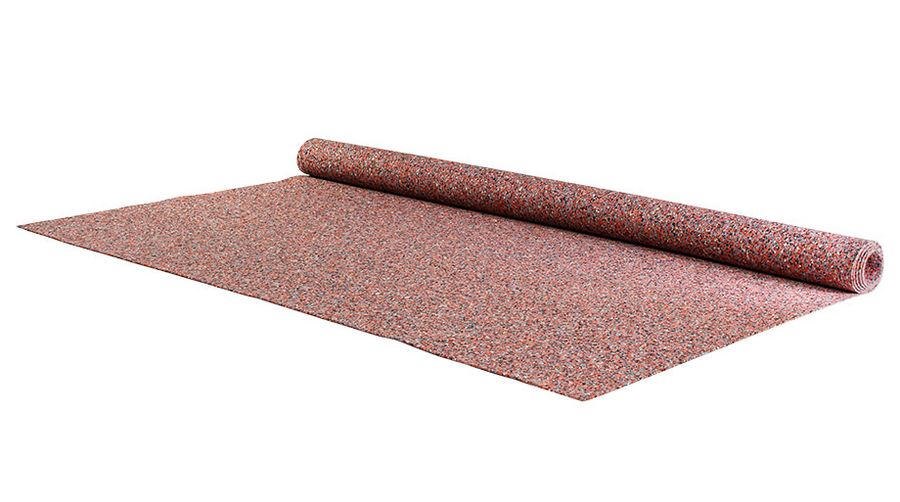

Delivery Form: rolls, sheets, cuttings on request

Technical Details

Surface Weight: approx. 8.4 kg/m² when 8 mm thick

Bulk Density: approx. 1,050 kg/m³

Tensile Strength: at least 0.60 N/mm² in accordance with DIN EN ISO 1798

Elongation at Break: at least 60% in accordance with DIN EN ISO 1798

Temperature Resistance-40 °C to +120 °C

Resistance: UV light, sodium chloride, weak acids and alkaline solutions (swells up when exposed to hydrocarbons such as oil, fuel, etc.)

Thicknesses: 8 mm (other on request)

Cleaning
  • Cleaning: shaking out, vacuuming, washing, possibly treating with a high-pressure cleaner
Discard Status
  • Discard Status: cracks, holes, crushing, after contact with oil, fuel, chemicals, etc. REGUPOL cargo mat 9510® is suitable for repeated use through to discard status pursuant to testing by VDZ Dortmund.

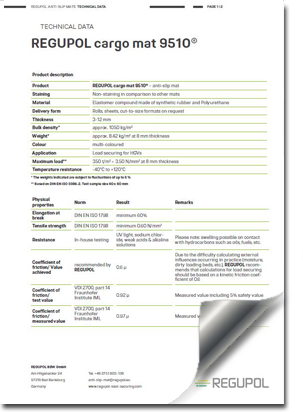

Technical data sheet for
REGUPOL cargo mat 9510®

PDF



OUTSTANDING PERFORMANCE

According to tests carried out by the Fraunhofer Institute, REGUPOL Cargo Mat 9510® achieved kinetic friction coefficients of more than 0.9 μ. The results exceed guideline requirements.  According to VDI guideline 2700 part 15, the normal requirement is 0.6 μ.



PRODUCT PASS

PRODUCT PASS FOR ROADSIDE CHECKS

Purchasing REGUPOL Cargo Mats entitles you to a copy of REGUPOL's product pass for presentation at roadside checks.  The pass provides a clear, concise summary of the matting's physical properties and performance credentials.

LOADING RECOMMENDATIONS

Download the PDFs
