Expansion Joint Covers for Walls and Ceilings

Expansion Joint Covers for Walls & Ceilings

CHOOSE A TYPE OF WALL / CEILING EXPANSION JOINT COVER:

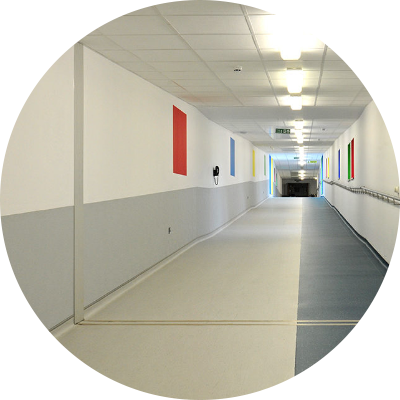

Gasketed EJCs for Wall & Ceilings

Ideal for areas where hygiene is paramount, as gaskets can be sealed to maintain infection control & cleanability.

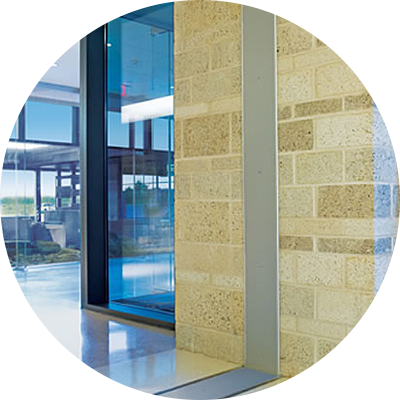

Metal EJCs for Walls & Ceilings

Designed to require very little maintenance within interior settings.

GASKETED EXPANSION JOINT COVERS:
Walls & Ceilings

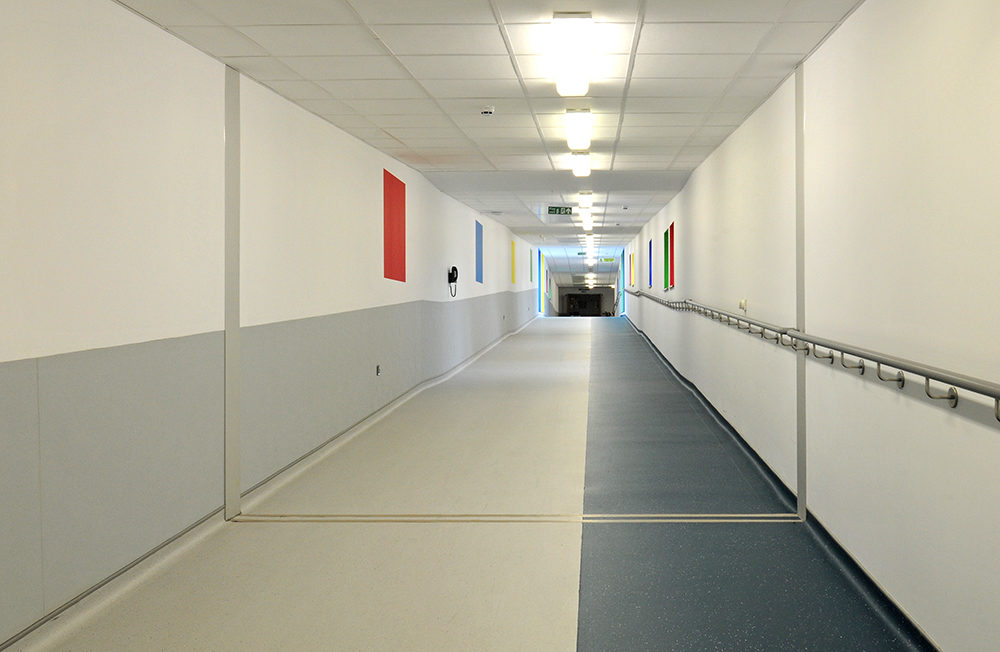

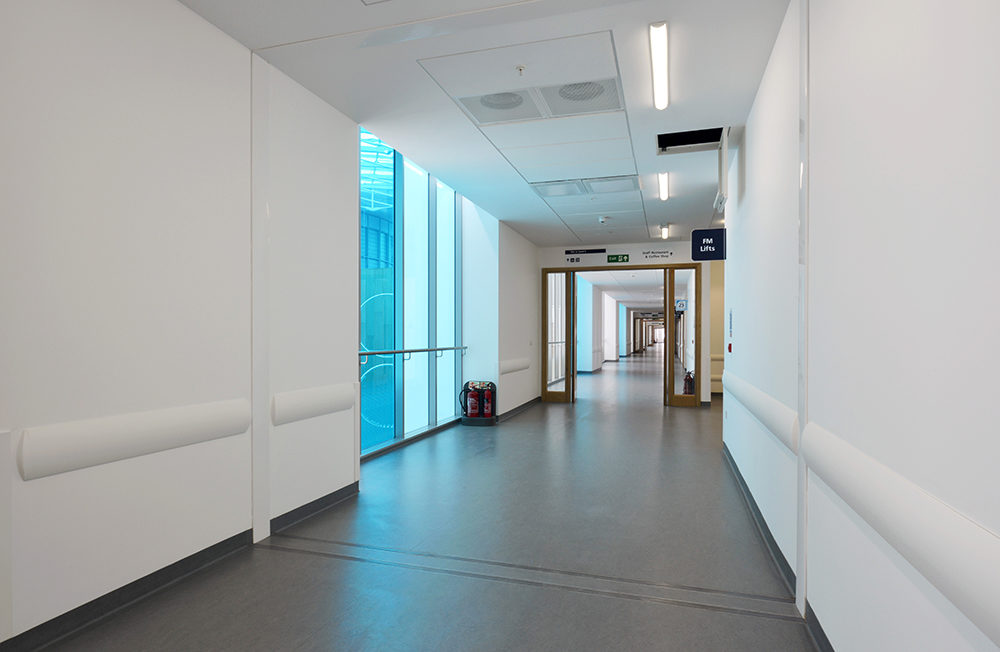

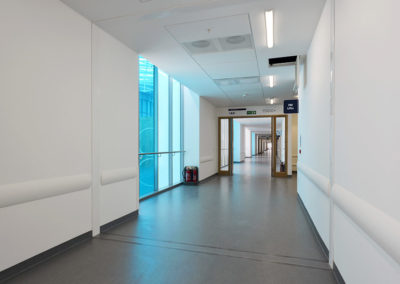

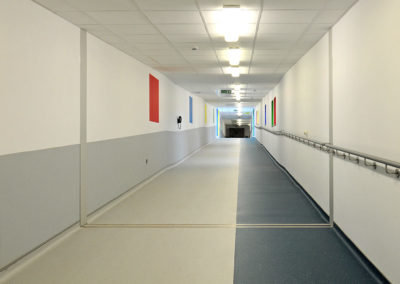

GASKETED EJCs - Walls & Ceilings

CS Gasketed wall & ceiling joint covers are designed to allow multi-directional movement and are suitable for most wall and ceiling finishes.

These flush covers are unobtrusive and designed to minimize visual impact. The wall & ceiling range complements the CS floor range.

Gasketed models are designed to meet hygiene demands in settings such as hospitals and food preparation areas, as the gaskets can be sealed for the purpose of infection control and cleanability.

IMAGE GALLERY:

GASKETED EJCs

Watch How they Work:

FCS SERIES

FCF SERIES

HC SERIES

TECHNICAL PRODUCT INFORMATION

Gasketed Expansion Joint Covers for Walls & Ceilings

FWF Series

This flush fitting joint cover is perfectly suited to applications where minimal visual impact & hygiene maintenance are important factors. Suitable for dry lined walls or ceilings. Surface mounted side frames with a recess to allow taping & jointing.

Joint Width: up to 50mm
Horizontal: up to ±10mm
Vertical: up to ±10mm
Lateral: up to ±3mm

FWS Series

Designed to withstand significant building movement, as the accordion type central gasket allows large horizontal movement of more than half the joint width. This surface mounted EJC has a small recess in its aluminium side frames, which allows the cover to become flush with the plaster or mortar wall finishes

Joint Width: up to 150mm
Horizontal: up to +150/-105mm
Vertical: up to ±15mm
Lateral: up to ±6mm

FCS Series

HCS is designed for suspended ceilings and allows 100% movement due to the accordion style gasket. The cover is mounted onto available ceiling hangers and allows multi-directional movement. Discreet side frames reduce visual impact.

Joint Width: up to 100mm
Horizontal: up to +100/-75mm
Vertical: up to ±15mm
Lateral: up to ±6mm

FCF Series

Designed for suspended ceilings, this flush gasketed expansion joint cover is mounted onto available ceiling hangers and effectively reduces visual impact.

Joint Width: up to 100mm
Horizontal: up to +50/-75mm
Vertical: up to ±15mm
Lateral: up to ±12mm

HC Series

The HC expansion joint cover is a simple and economical solution. The concertina style PVC cover is mechanically attached to the ceiling grid or wall.

Joint Width: up to 10mm
Horizontal: up to ±100mm
Vertical: up to ±15mm
Lateral: up to ±3mm

GTW Series

Ideal for areas with larger movement requirements, the GTW expansion joint cover has a flush aluminium centre plate and dual CS TPR gaskets. This recess mounted EJC is suitable for most wall & ceiling finishes.

Joint Width: up to 100mm
Horizontal: up to ±38mm
Vertical: up to ±15mm
Lateral: up to ±8mm

SGW Series

Designed to handle seismic and thermal movement, the SGW cover has a durable central aluminium plate that disengages during a seismic event, preventing wall damage & buckling. Dual gaskets compensate thermal movement. Aluminium centre plates are clear finished as standard. Gaskets are available in black and grey as standard.

Joint Width: up to 250mm
Horizontal: up to ±25mm

SGC Series

A seismic ceiling cover with reveals. The aluminium cover plate can be painted or covered for a maximum concealment.

METAL EXPANSION JOINT COVERS:
Walls & Ceilings

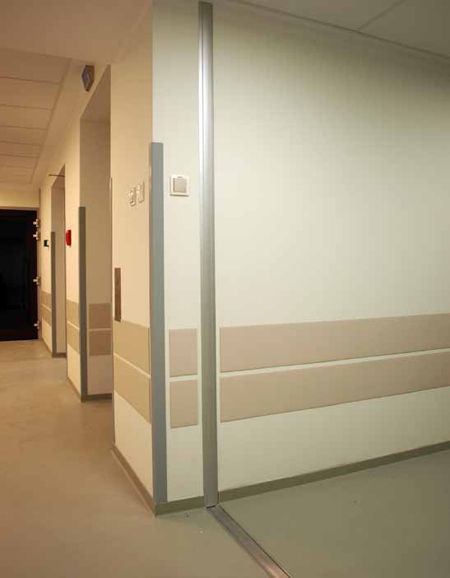

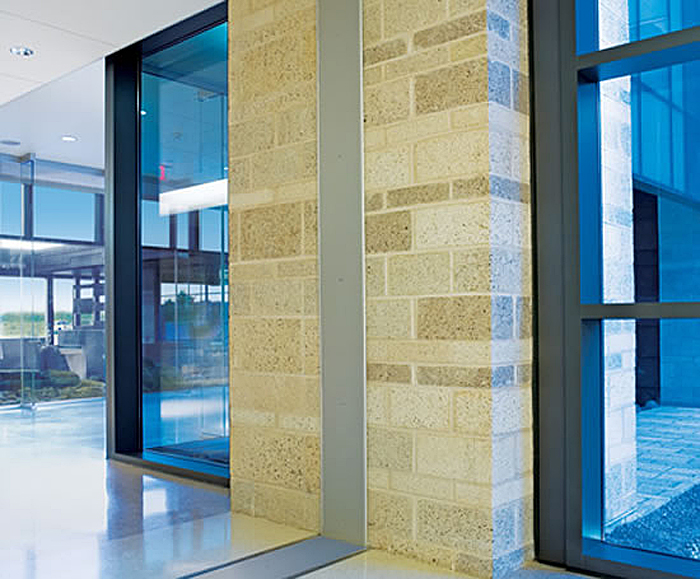

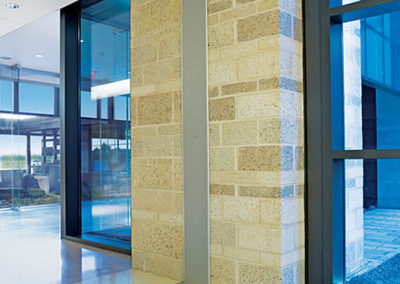

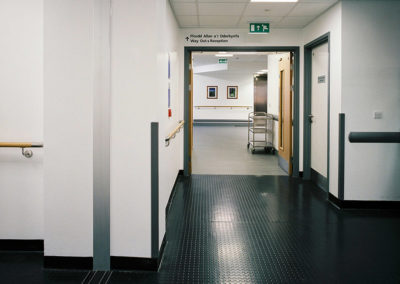

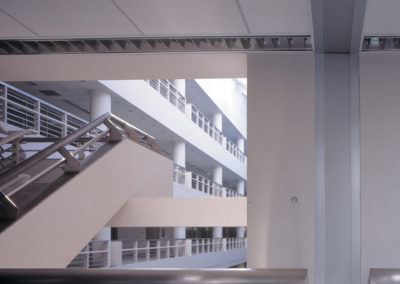

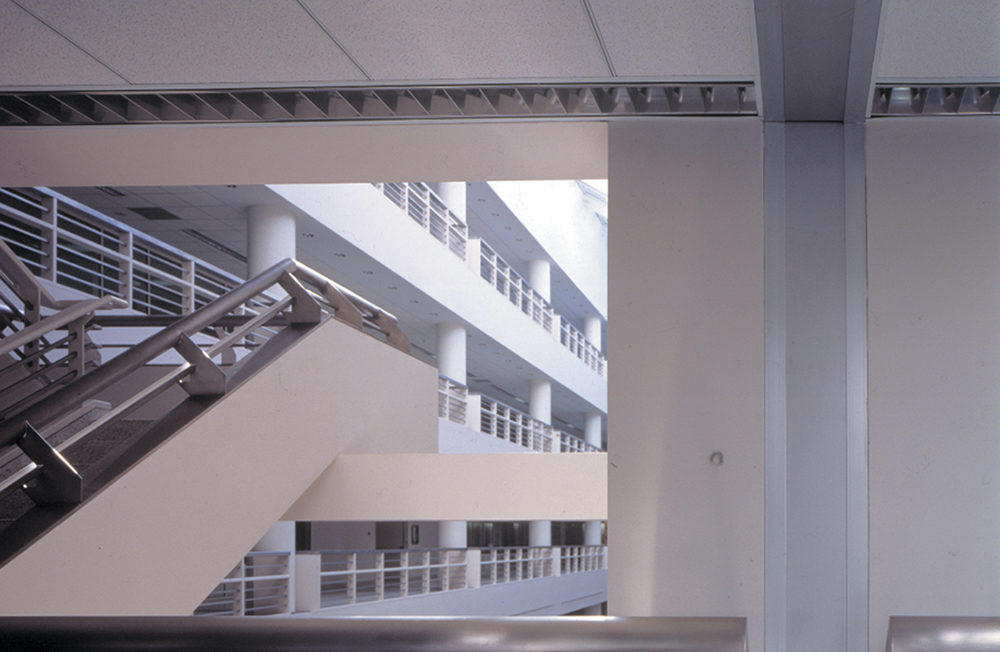

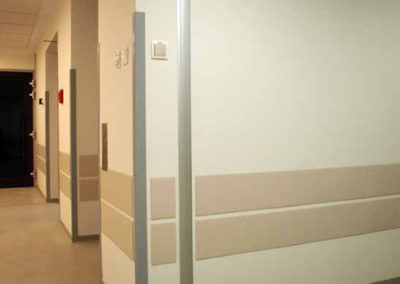

METAL EJCs - Walls & Ceilings

Designed to complement the CS range of metal expansion joint covers for floors.

IMAGE GALLERY:

TECHNICAL PRODUCT INFORMATION

Metal Expansion Joint Covers for Walls & Ceilings

AFW Series

A recess mounted EJC ideal for walls with suspended ceiling. Provides a flush finish next to ceramic tiles, stone or plaster board. Suited to interior applications where low maintenance or tamper-resistance factors are important. Exterior covers clip onto bottom side frames and provide a flush, tamper-proof finish without any visible fixings.

ASM Series

ASM & ASMC are aluminium wall / ceiling joint covers comprised of extruded aluminium components and duroflex gaskets, where the cover plates contact adjacent surfaces.

ESW & ESC Series

For exterior walls, this seismic expansion joint cover features extruded aluminium components, spring steel turnbars, duroflex gaskets and a polyethylene vapour barrier.
