REGUPOL CARGO MAT 1000®
A Heavy Duty Mat for Heavy Duty Loads

Even under extreme weather conditions, this mat performs where others fail.

ENQUIRE ABOUT THIS PRODUCT

REGUPOL cargo mat 1000®

Suitable for Heavy Duty Transports and Securing Loads During Extreme Weather Conditions

This premium quality anti-slip transport mat has a loading capacity of up to 630 t/m², making it suitable for heavy transports.  Tests carried out by the TUL-LOG Institute, confirmed that REGUPOL cargo mat 1000® achieves sliding friction coefficients of more than 0.6μ (under winter conditions), which exceeds minimum values for anti-slip mats of 0.4 μ for extreme weather conditions (as outlined in VDI 2700 part 15).  This makes REGUPOL cargo mat 1000® suitable for all kinds of transport, including heavy loads under hazardous weather conditions.

A WINNER UNDER TESTING CONDITIONS: A test was conducted by the Federal Highways Research Agency whereby the vehicle loading bed was sprayed with a combination of moisture and road salt at a temperature of -15°C. A range of mats were tested but REGUPOL cargo mat 1000® was one the few to pass this challenging test.

Maximum Loading
  • 630 t/m² = 6.30 N/mm² when 8 mm thick

 CALCULATE LOAD SAFETY

Material
  • Material: anti-slip mat based on SBR/NBR

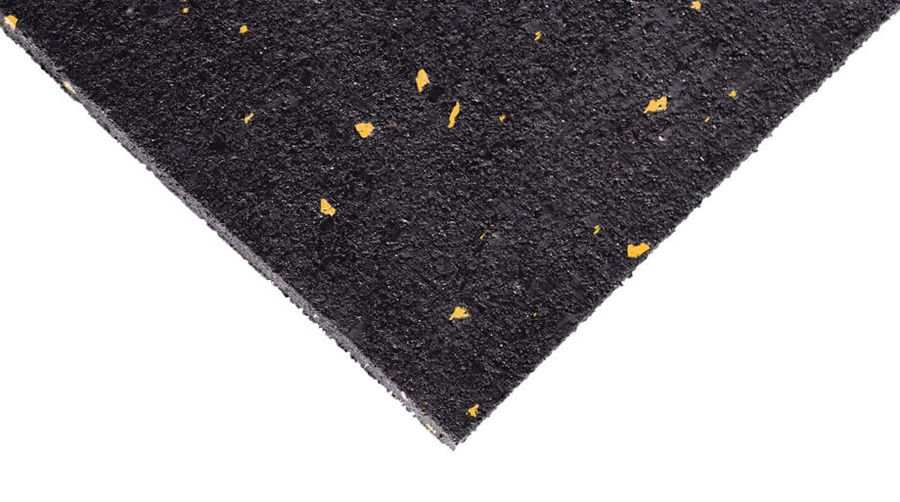

  • Colour: black with yellow coloured particles
Formats

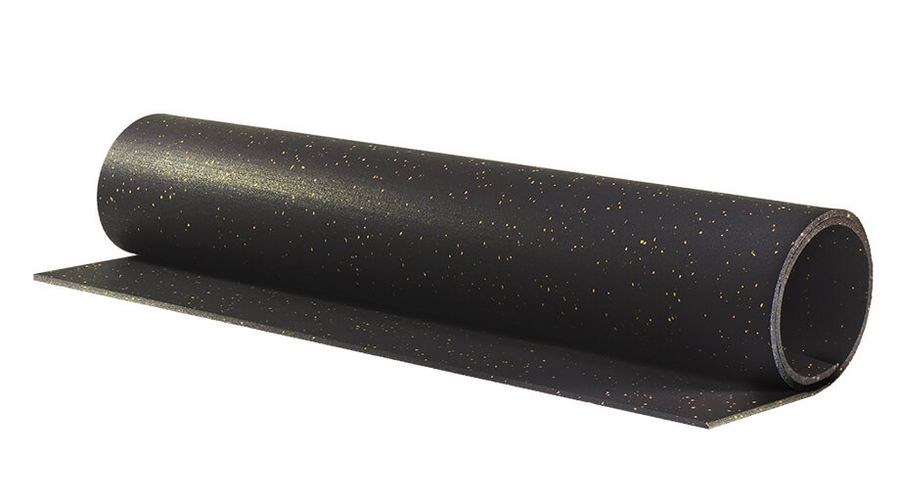

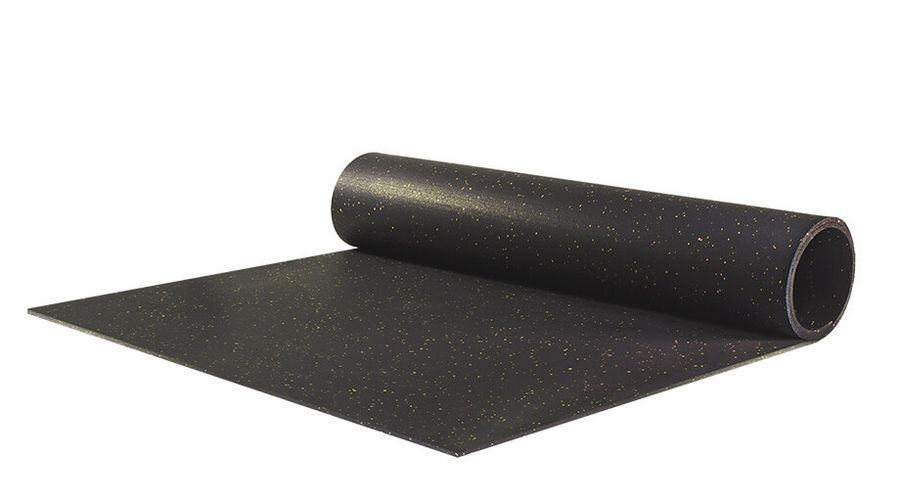

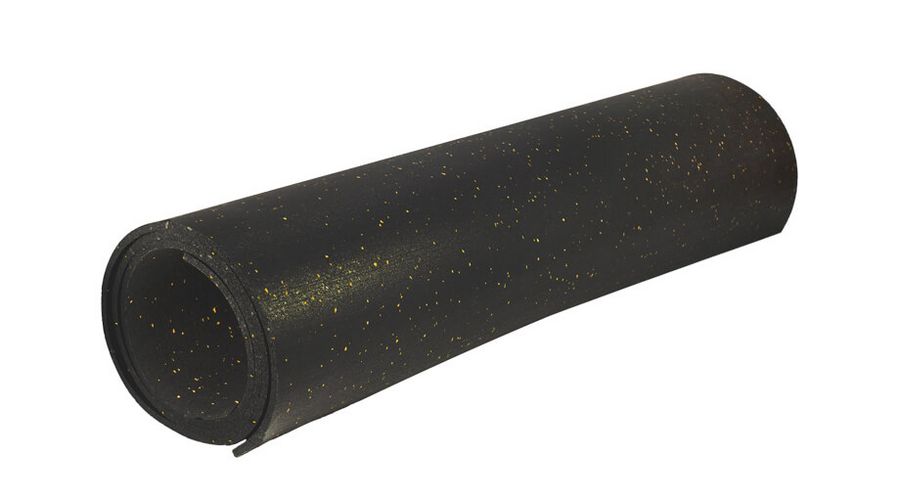

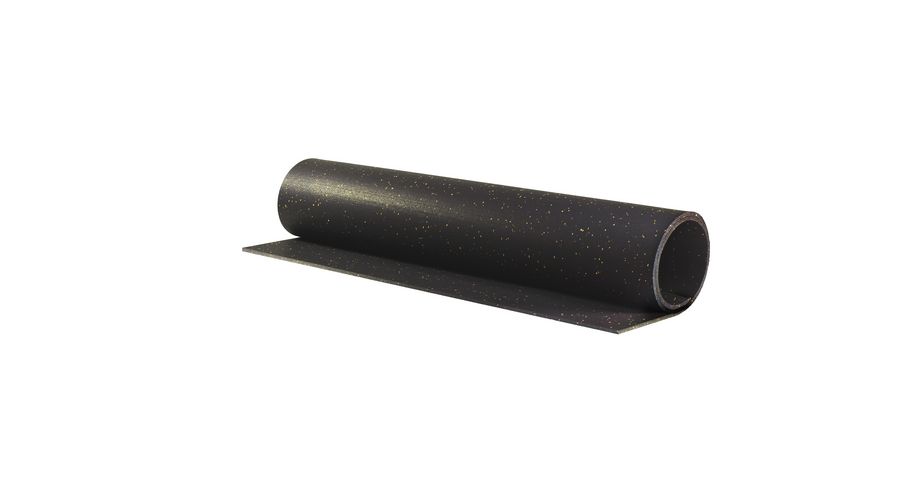

Delivery Form: rolls, sheets, cuttings on request
Sliding Friction Coefficient μD
Lab tested value 0.86 µ
0.82 µ in acc. with VDI 2700 – part 14

Value calculated in practice 0.6 µ In acc. with VDI 2700 – part 15

Technical Details

Surface Weight:

– approx. 7.6 kg/m² when 8 mm thick
– approx. 11.7 kg/m² when 12 mm thick

Bulk Density: approx. 950 kg/m³

Tensile Strength: at least 0.60 N/mm² in accordance with DIN EN ISO 1798

Elongation at Break: at least 60% in accordance with DIN EN ISO 1798

Temperature Resistance-40 °C to +120 °C

Resistance: UV light, sodium chloride, weak acids and alkaline solutions (swells up when exposed to hydrocarbons such as oil, fuel, etc.)

Thicknesses: 8 mm, 12 mm (other on request)

Cleaning
  • Cleaning: shaking out, vacuuming, washing, possibly treating with a high-pressure cleaner
Discard Status
  • Discard Status: cracks, holes, crushing, after contact with oil, fuel, chemicals, etc. REGUPOL cargo mat 1000® anti-slip mats are suitable for repeated use through to discard status pursuant to testing by VDZ Dortmund.

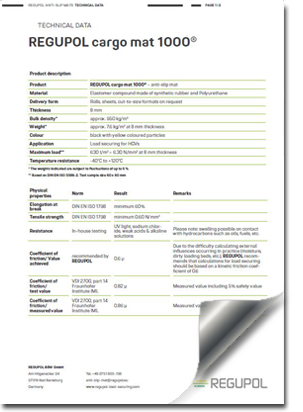

Technical data sheet for
REGUPOL cargo mat 1000®

PDF



OUTSTANDING PERFORMANCE

According to tests carried out by the Fraunhofer Institute, REGUPOL Cargo Mat 1000® achieved kinetic friction coefficients of more than 0.82 μ. The results exceed guideline requirements.  According to VDI guideline 2700 part 15, the normal requirement is 0.6 μ.



PRODUCT PASS

PRODUCT PASS FOR ROADSIDE CHECKS

Purchasing REGUPOL Cargo Mats entitles you to a copy of REGUPOL's product pass for presentation at roadside checks.  The pass provides a clear, concise summary of the matting's physical properties and performance credentials.

LOADING RECOMMENDATIONS

Download the PDFs
