REGUPOL CARGO MAT 7210®

Ideal for Medium Weight Cargo

REGUPOL’S TOP SELLING CARGO MAT WORLDWIDE

ENQUIRE ABOUT THIS PRODUCT

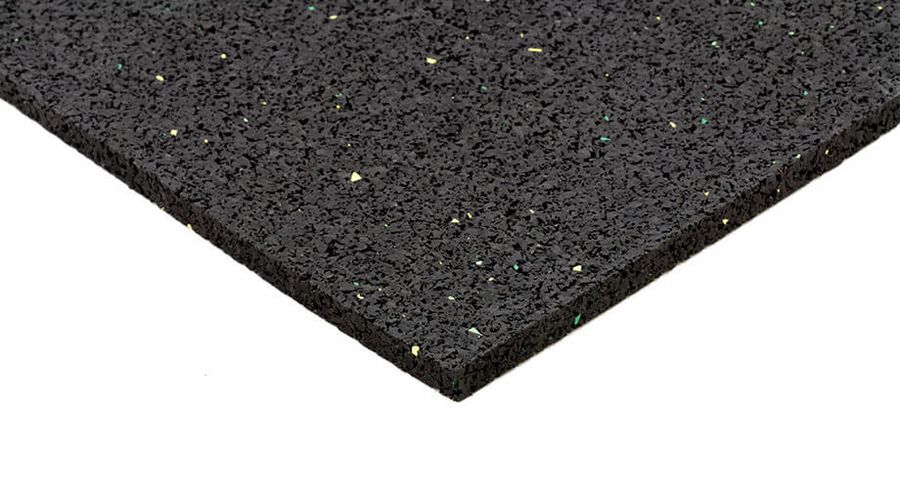

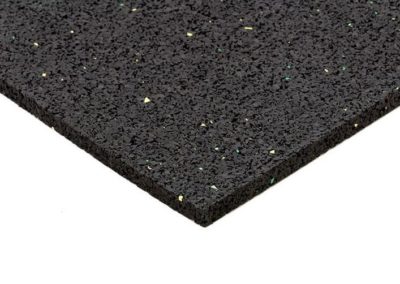

REGUPOL cargo mat 7210®

Outstanding Price/Performance Ratio

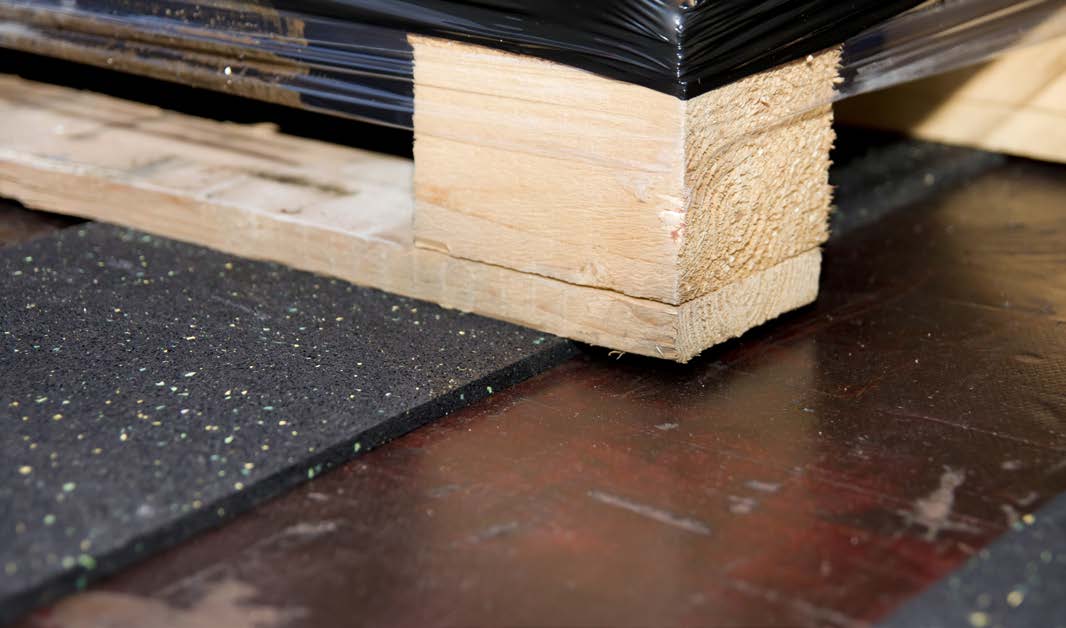

REGUPOL Cargo Mat 7210® is the ideal mat to secure the most commonly transported load-weights (medium weight cargo).  The relatively inexpensive cost of REGUPOL Cargo Mat 7210® represents excellent value considering the product’s outstanding performance and ability to satisfy safety requirements for a large proportion of consignments. It’s easy to understand why REGUPOL Cargo Mat 7210® is so popular with a whole range of transportation companies worldwide from trucking and rail companies, to international air and sea operations.

Maximum Loading
  • 250 t/m² = 2.50 N/mm² when 8 mm thick

 CALCULATE LOAD SAFETY

Material
  • Material: anti-slip mat based on SBR/NBR

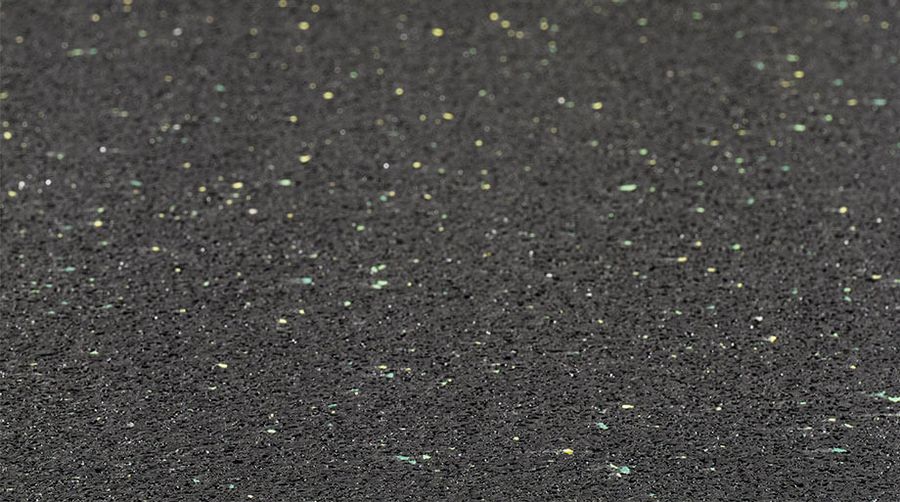

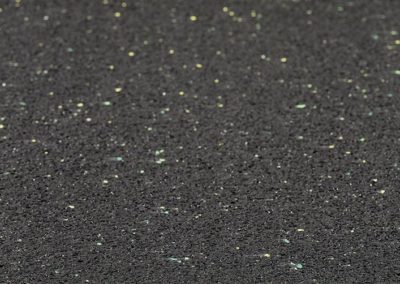

  • Colour: black with green, bright green and yellow coloured particles
Formats

Delivery Form: rolls, sheets, cuttings on request

Sliding Friction Coefficient μD

Lab tested value 0.79 µ
0.75 µ in acc. with VDI 2700 – part 14

Value calculated in practice 0.6 µ in acc. with VDI 2700 – part 15

Technical Details

Surface Weight: approx. 6.88 kg/m² when 8 mm thick

Bulk Density: approx. 860 kg/m³

Tensile Strength: at least 0.60 N/mm² in accordance with DIN EN ISO 1798

Elongation at Break: at least 60% in accordance with DIN EN ISO 1798

Temperature Resistance-40 °C to +120 °C

Resistance: UV light, sodium chloride, weak acids and alkaline solutions (swells up when exposed to hydrocarbons such as oil, fuel, etc.)

Thicknesses: 8 mm (other on request)

Cleaning
  • Cleaning: shaking out, vacuuming, washing, possibly treating with a high-pressure cleaner
Discard Status
  • Discard Status: cracks, holes, crushing, after contact with oil, fuel, chemicals, etc. REGUPOL cargo mat 7210®  is suitable for repeated use through to discard status pursuant to testing by VDZ Dortmund.

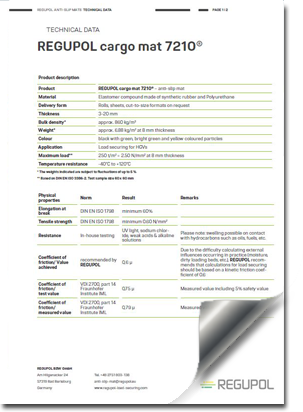

Technical Data Sheet for
REGUPOL Cargo Mat 7210®

PDF


OUTSTANDING PERFORMANCE

According to tests carried out by the Fraunhofer Institute, REGUPOL Cargo Mat 7210® achieved kinetic friction coefficients of more than 0.7 μ. The results exceed guideline requirements.  According to VDI guideline 2700 part 15, the normal requirement is 0.6 μ.



PRODUCT PASS

PRODUCT PASS FOR ROADSIDE CHECKS

Purchasing REGUPOL Cargo Mats entitles you to a copy of REGUPOL's product pass for presentation at roadside checks.  The pass provides a clear, concise summary of the matting's physical properties and performance credentials.

LOADING RECOMMENDATIONS

Download the PDFs
