REGUPOL shooting range surfaces are designed to cover walls, ceilings, floors and bullet traps in both interior and exterior settings. REGUPOL products offer complete solutions for the armed forces, police, marksmen clubs, security services and private shooting clubs. The number of facilities successfully protecting their marksmen with REGUPOL products over the last 40+ years, is testament to the quality and reliability of REGUPOL solutions.  The broad range of REGUPOL products allows us to devise customized solutions to suit individual scenarios, from ranges with one main shooting direction, to those with 180° ranges.

SHOOTING RANGE SURFACES

PROVIDING OPTIMAL PROTECTION FROM RICOCHET, REBOUNDS & BULLET FRAGMENTATION



REGUPOL shooting range surfaces are designed to cover walls, ceilings, floors and bullet traps in both interior and exterior settings. REGUPOL products offer complete solutions for the armed forces, police, marksmen clubs, security services and private shooting clubs. The number of facilities successfully protecting their marksmen with REGUPOL products over the last 40+ years, is testament to the quality and reliability of REGUPOL solutions.  The broad range of REGUPOL products allows us to devise customized solutions to suit individual scenarios, from ranges with one main shooting direction, to those with 180° ranges.

ProductsBrochure

ENQUIRE ABOUT THIS PRODUCT

R

HIGH PERFORMANCE

Absorbs projectiles and calibres up to 7,000 joules.
R

NO BULLET HOLES

The elastic material prevents the occurrence of visible bullet holes.
R

SOUND ABSORBENT

Helps to reduce noise levels in shooting ranges.

R

INDOOR & OUTDOOR

Harsh exterior conditions are not a problem due to superior weather & UV resistance.
R

CUSTOM SOLUTIONS

Tailored to suit individual requirements, whether simple or more complex.
R

TOUGH & BUILT TO LAST

Wear resistant, even under intensive use. Delivers a long service life.
R

VARIETY of COLOURS

The flooring surface is available in a variety of colours.

REGUPOL SHOOTING RANGE SURFACES

High resistance to wear, even under intensive use!

PRODUCTS:

REGUPOL SAFETY FLOORING FH:

Safety Flooring FH

This high performance flooring consists of a base elastic tile with three layers of polyurethane on top. This system provides the best possible anti-ricochet protection from projectiles up to 7,000 joules.

  • Skilled installation technicians install the flooring in liquid form on-site to achieve a seamless and even surface.
  • The flooring will last for decades due to its ability to resist all kinds of mechanical influences.
  • The base tile (REGUPOL E43) is an elastic tile composed of PUR-bonded, high quality fibres. Tile size: (1000mm x 500mm)
  • An alternative sub-base is available in the form of REGUPOL rolls (REGUPOL 7619/II).
  • The wear resistant surface is available in a variety of different colours (please see below).
Test Result Rebound and Ricochet Behaviour
  • Projectiles fired from angles of between 10° and 90°: none of the projectiles fired resulted in rebounds or ricochet and therefore presented no danger to the marksmen. The projectiles or projectile fragments were all successfully absorbed by the REGUPOL Safety Flooring. Certified by the German Proof House in Ulm.
Test Result Electrostatic Behaviour
  • In line with DIN 54346. Certified by TFI (Textile and Flooring Institute GmbH).
E43 Elastic Tiles
  • PUR-bonded high-quality rubber fibres with a triple PUR layer and a wear-resistant surface coating:

Standard Dimensions: 1,000 x 500 mm per tile.

Dimensional Tolerances: length/width ± 1% Thickness ± 2mm.

ThicknessBlack base mat 43 mm, PUR layer 2 mm; other thicknesses on request.

Weight per m²: approx. 40 kg/m²

Surface: seamless sealed

Colour:  Black base mat, PUR coated surface available in many different colours.

Cleaning: Easy to clean, wet cleaning is also possible



REGUPOL Rolls: 7619/II Elastic Layer
  • A sub-base in roll form that can be used as an alternative to the E43 Elastic Tile. Available in a variety of thicknesses
PUR LAYER COLOURS:
LINING COLOURS:

REGUPOL ELASTIC TILE E43/E70:

Elastic Tile E43/E70

This tile is suitable for walls and floors, and has been developed to offer superior anti-ricochet and anti-rebound protection:

  • Possesses outstanding weather and wear resistance, making this tile particularly suitable for exterior applications.
  • An elastic tile composed of PUR-bonded, high quality fibres. Tile size: (1000mm x 500mm).
  • Available in two colours: red brown & black.
  • Available in two thicknesses: 43mm & 70mm.
  • Long service life.

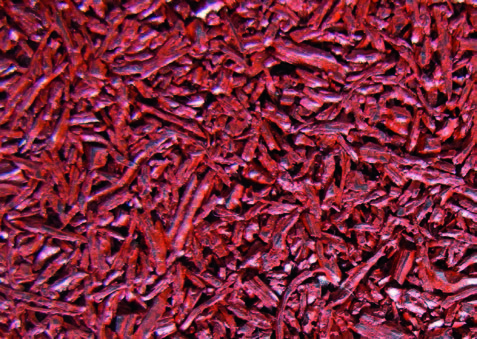

Observe the highly compacted material Structure of Elastic Tile E43:

Technical Details

Standard Dimensions: 1,000 x 500 mm per tile.

Dimensional Tolerances: length/width ± 1% Thickness ± 2mm.

Thickness:

  • 43 mm
  • 70 mm

Weight per m²:

  • ca. 35 kg/m²
  • ca. 56 kg/m²

Colours:  Red Brown, Black

REGUPOL ELASTIC TILE RG520:

Elastic Tile RG520

This tile is designed to collect slow projectiles, such as in front of bullet traps:

  • The unique material density results in projectiles penetrating into the tiles with a low kinetic energy, which reliably prevents ricochet.
  • Tile size: (1000mm x 500mm).
  • Available in two colours: red brown & black.
  • Available in three thicknesses: 43mm, 60mm & 100mm.
  • Long service life.

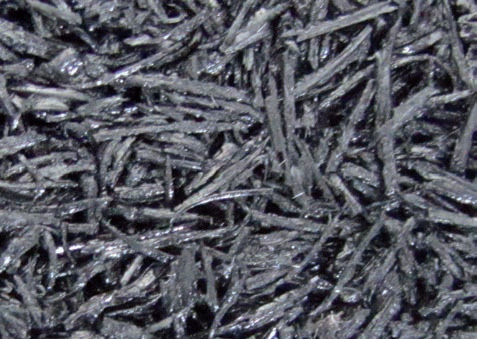

See image below: the material structure of REGUPOL Elastic Tile RG520 is distinctly more open compared to other REGUPOL elastic tiles.

Technical Details

Standard Dimensions: 1,000 x 500 mm per tile.

Dimensional Tolerances: length/width ± 1% Thickness ± 2mm.

Thickness:

  • 43 mm
  • 60 mm
  • 100mm

Weight per m²:

  • approx. 22.5 kg/m² (at 43 mm thickness)
  • approx. 31.5 kg/m² (at 60 mm thickness)
  • approx. 52.0 kg/m² (at 100 mm thickness)

Colours:  Red Brown, Black

REGUPOL SHOOTING BLOCKS:

Shooting Blocks

REGUPOL shooting blocks offer a wide range of application possibilities and they are ideally suited for use in bullet traps.



  • Each trap can be designed to suit individual requirements.
  • The blocks can be applied in various layers or even staggered in any height or depth.
  • Alternatively, specially designed constructions based on Regupol elastic tiles can also be installed.
  • Block size: (500mm x 300mm x 200mm).
  • Available in one colour: red brown.
  • Long service life.
Technical Details

Standard Dimensions: 500 x 300 x 200 mm per block.

Weight per m²:  25 kg

Colour:  Red brown

REGUPOL FRAGMENTATION RUBBER SHEET:

Fragmentation Rubber Sheet

REGUPOL fragmentation rubber sheets serve as the primary bullet impact area and may be used to form part of a backstop immediately behind the targets.

  • Designed to absorb fragmented bullets and rebounds in all manner of different bullet trap designs.
  • Supplied in rolls and can be cut to almost any required size.
  • Sheet width: 1,250mm.
  • Thickness: 12mm.
  • Available in one colour: black.
  • Long service life.

REGUPOL INTERLOCKING PAVERS:

Interlocking Pavers

Interlocking pavers provide an anti-slip surface ideal for external shooting stands and access pathways:



  • Very quiet underfoot, impact sound absorbing.
  • Extremely resilient & durable, even under tough conditions – including vehicular traffic (where a proper sub-base is provided)
  • Super anti-slip in wet and dry conditions.
  • Manufactured from recycled rubber, making it a sustainable way to provide safe surfaces in shooting ranges.
  • Thicknesses: 43mm.
  • Available in two colours: red brown & black.
  • Suitable for all outdoor areas.
  • Long service life.
Material & Colours
  • PUR-bonded rubber fibres, solid-coloured
  • Available in two colours: red brown & black
Technical Details

Standard Dimensions: 200 x 160 mm per unit

Thickness: 43 mm

Weight per m²38 kg/m²

Installation: On top of a well compacted and levelled crushed stone base.
Sand is used for the joints between the pavers.
Alternatively: glued onto concrete sub-base.

Composition
  • Single-layer construction of homogeneous material.
Suggested Application Areas
  • Shooting stands
  • Pathways
A Long Track Record

REGUPOL shooting range surfaces have been providing optimal protection from rebounds, ricochet and bullet fragmentations for 40+ years!

TOP-CLASS MARKSMEN NEED TOP-CLASS PROTECTION

REGUPOL products offer complete solutions for all danger areas in shooting ranges including: walls, ceilings, floors and bullet traps.
