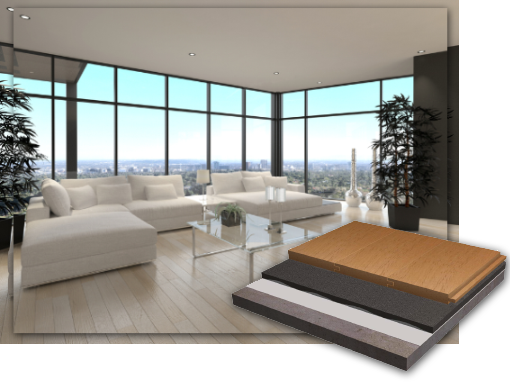

ACOUSTIC UNDERLAY for FLOORING

IMPACT SOUND INSULATION for TILES, TIMBER, CARPET, RESILIENT FLOORING & SCREED BEDS

Regupol acoustic products significantly reduce impact sound levels within living and working environments and, for many years, Regupol underlays have represented the preferred choice for architects, project engineers and acoustic specialists. Every building has different noise parameters influenced by factors such as the Building Code of Australia, the specifying architect / developer, local council and strata by-laws etc. For this reason, Regupol offer an extensive range of acoustic underlay products to satisfy different scenarios. In addition to noise reduction benefits, Regupol underlays also enhance living and walking comfort while improving the resilience of the top floor.

ACOUSTIC UNDERLAY for FLOORING

IMPACT SOUND INSULATION for TILES, TIMBER, CARPET, RESILIENT FLOORING & SCREED BEDS

Regupol acoustic products significantly reduce impact sound levels within living and working environments and, for many years, Regupol underlays have represented the preferred choice for architects, project engineers and acoustic specialists. Every building has different noise parameters influenced by factors such as the Building Code of Australia, the specifying architect / developer, local council and strata by-laws etc. For this reason, Regupol offer an extensive range of acoustic underlay products to satisfy different scenarios. In addition to noise reduction benefits, Regupol underlays also enhance living and walking comfort while improving the resilience of the top floor.

ProductsBrochures
R

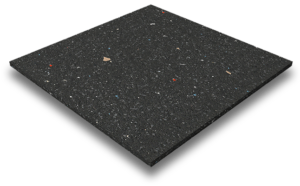

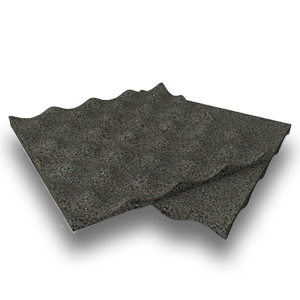

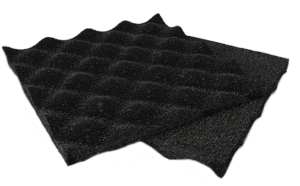

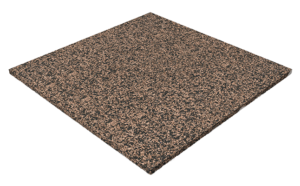

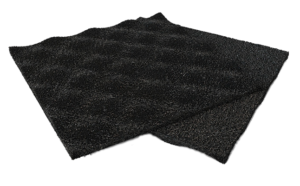

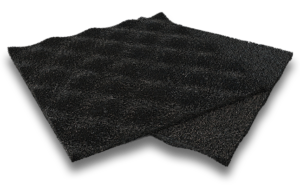

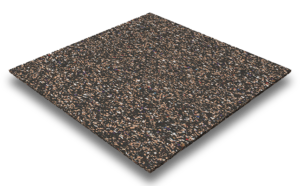

12 Individual Products Available

Each product has its own distinctive characteristics and each underlay is suitable for a variety of different applications.
R

Available in Variety of Thicknesses

Available in thicknesses ranging from 3mm to 17mm. Please refer to each variety for details.
R

Roll or Tile Format

The majority of Regupol underlays are available in roll or tile format, with a few exceptions. Please check the brochure for details.
R

Acoustic & Thermal Insulation

Regupol underlays can significantly reduce impact noise in a building as well as offering benefits of thermal insulation.
R

Easy to Cut and Install

Whether for a commercial or domestic application, Regupol underlays are easy to install.

R

Resistant to Ageing

Regupol underlays offer a long service life and remain permanently elastic. The underlays also reduce premature wear to the top floor.
R

Environmentally Sustainable

Regupol underlays are manufactured from recycled materials and at the end of their service life, Regupol underlays can be 100% recycled.
R

Can be Used with Underfloor Heating

Regupol underlays are suitable for use with underfloor heating systems and also enhance the walking and living comfort of a building’s interior.


View Individual Products on Our Dedicated Underlay Website


VIEW UNDERLAY PRODUCTS ACCORDING TO YOUR FLOORING TYPE



TESTED for ACOUSTIC PERFORMANCE
Regupol Acoustic Underlays have undergone field and lab testing, with each system meeting relevant flooring and building standards for tiled floors, resilient floors, screed floors + timber flooring.
More Information
Suggested Applications
  • Houses, townhouses & apartments
  • Schools & universities
  • Offices
  • Hospitals
  • Libraries & museums
  • Commercial & multi-storey buildings
  • Arenas & stadiums
Features
  • Significant noise reduction
  • Easy to cut and install
  • Low structural height
  • Remains permanently elastic
  • Offers thermal insulation
  • Suitable for use with underfloor heating
  • Low emissions
  • Completely recyclable
  • Breathable
  • Resistant to ageing
Acoustic Compliance

REGUPOL® ACOUSTIC UNDERLAYS ARE:

  • BCA Part F.5 Compliant
  • Tested to ISO 140.6-1998
  • BCA Part F.2 Compliant
  • Rated to AS/NZ 717.2-2004

During the design process, acoustic engineers require laboratory results to show confidence and assurance that the flooring system will work. Currently in Australia, there is an abundance of test results for walls, but very little for floors. Regupol® (Australia) Pty Ltd have taken the initiative to test their Acoustic Underlays in the laboratory. The tests have demonstrated conformity with the Building Code of Australia (BCA).  Different types of underlay, with different floor surfaces and various thicknesses were tested. The tests were conducted in the CSIRO laboratories at Highett Victoria.

The BCA requires a minimum performance rating of Ln,w < 62. This rating is a measure of the flooring system’s ability to supress footfall and noise and from other impacts. The lower this rating, the higher the impact sound reduction performance of the system. A building solution will comply with the BCA if it satisfies the performance requirements.  Regupol provides a building solution which satisfies the performance requirement of Ln,w < 62.

The Unit of Measurement Explained:

L’n,W – Weighted Normalised Impact Sound Pressure Level.

In addition, a building solution which complies with the “Deemed-to-Satisfy Provision” is therefore deemed to comply with the performance requirements. The “Deemed-to-Satisfy Provision F5.3” of the BCA states:

F5.3 DETERMINATION OF IMPACT SOUND INSULATION RATINGS

A floor in a building required to have an impact sound insulation rating must:

i) have the required value for weighted normalised impact sound pressure level with spectrum adaptation term (Ln,w) determined in accordance  with AS/ISO 717.2 using results from laboratory measurements; or

ii) comply with specification F5.2

F5.4 SOUND INSULATION RATING OF FLOORS

A floor in a Class 2 or 3 building must have an RW+Ctr (airborne) not less than 50 and an L’n,w (impact) not more than 62 if it separates –

i) sole-occupancy units; or

ii) a sole occupancy unit from a plant room, lift shaft, stairway, public corridor, public lobby or the like, or parts of different classification.

REGUPOL® ACOUSTIC UNDERLAY COMPLIANCE IN GREATER DETAIL:

  • Complies with NBCA Part F5.2 Impact Sound Insulation
  • Complies with BCA Part 5.4 Impact sound Insulation
  • Complies with AS 4492 (Int.) Tiling Standard
  • Complies with AS 3958.1-2007 Ceramic Tiles
  • Complies with AS 3740-2004 Waterproofing standard
  • Complies with AS 1884-1985 Floor Coverings Resilient
  • Complies with Green Star IEQ-13: Volatile Organic Compounds (VOC) requirements
  • Tested to AS ISO 717-2 1996: Part 2: ISO 140 Rating of sound insulation in buildings and of building elements – Part 2: Impact Sound insulation
  • Tested to ISO140-6.2004 Part 6: Laboratory measurement of impact sound insulation of floors
  • Tested to ISO140-7.2004: Part 7: Field measurements of impact sound insulation of floors
  • Tested to ISO140-8.2004: Part 8: Laboratory measurements of the reduction of transmitted impact noise by floor covering on a standard floor
  • Tested to ASTM E989-89 (1999): Standard Classification of Determination of Impact Sound Insulation Class (llC)
GECA (Good Environmental Choice Australia)
Recycled materials and products such as Regupol, can play a major role in the design & construction of environmentally friendly & sustainable buildings. To ensure this, we have had many of the Regupol Impact Sound Underlays GECA Certified for their environmental contribution.  The independent verification performed by GECA shows that the acoustic range of Regupol recycled products are environmentally preferable and meet the requirements of GECA 25-2011 v2 – Floor Coverings Standard.

Additionally, the GECA 25-2011 v2 Floor Covering is recognised by the Green Building Council of Australia (GBCA) under their assessment framework for product certification schemes. The selected Regupol products will provide a Level A sustainability factor weighting (100%) within the Green Star Sustainable Products Calculator.

Did you Know?
In the past 40 years, the volume of processed, shredded post-consumer tyre waste used in Regupol Products has exceeded 2 million cubic tonnes.
