PEDISYSTEMS: Entrance Matting

A WIDE RANGE OF TREAD INSERTS TO CHOOSE FROM. RECESS OR SURFACE MOUNTED INSTALLATION OPTIONS AVAILABLE

Pedisystems Entrance Matting is a versatile solution for a range of moderate to heavy use applications. The Pedisystem Entrance Mats are available in the Pedimat, Pediluxe and Pedigrid ranges, each with their own characteristics and advantages.  Pedimat is ideal for moderate use applications such as hotels and banks; while Pediluxe and Pedigrid are better suited to very high traffic environments such as hospitals and transport termini.  Pedimat and Pediluxe can be recess or surface mounted, while Pedigrid is designed exclusively for recessed applications, but benefits from an extra deep matwell. Read about the three systems to discover the best solution for your application, or contact ABS West to discuss the options available for your project.

PEDISYSTEMS: Entrance Matting

A WIDE RANGE OF TREAD INSERTS TO CHOOSE FROM. RECESS OR SURFACE MOUNTED INSTALLATION OPTIONS AVAILABLE.
Pedisystems Entrance Matting is a versatile solution for a range of moderate to heavy use applications. The Pedisystem Entrance Mats are available in the Pedimat, Pediluxe and Pedigrid ranges, each with their own characteristics and advantages.  Pedimat is ideal for moderate use applications such as hotels and banks; while Pediluxe and Pedigrid are better suited to very high traffic environments such as hospitals and transport termini.  Pedimat and Pediluxe can be recess or surface mounted, while Pedigrid is designed exclusively for recessed applications, but benefits from an extra deep matwell. Read about the three systems to discover the best solution for your application, or contact ABS West to discuss the options available for your project.
ProductsBrochures
Available in 3 Formats

CHOOSE A TYPE OF PEDISYSTEM ENTRANCE MAT

Wall and Door Protection

Pedimat

Recommended for buildings in moderate use e.g., offices, shops, hotels, banks.
Wall and Door Protection

Pediluxe

Suitable for high volume areas such as shopping centres, hospitals, entertainment venues & passenger termini.
Wall and Door Protection

Pedigrid

Exclusively for recessed installations, particularly new construction projects where high traffic levels are predicted.

Entrance flooring products you can trust!

It's for good reason that CS entrance matting surfaces have been used worldwide for decades!



R

ELEGANT & ENDURING

Where beauty meets function! CS entrance matting looks stunning; is extremely hard wearing & offers a long service life.

R

CUSTOMISED

Achieving the desired look at an entrance is easy with such versatile products that are customisable in terms of shape and insert options.

R

VERSATILE

The range is versatile enough to offer solutions according to budget & project, from moderate use through to heavy use.

R

SLIP RESISTANT

CS matting systems help to maintain safety at a building's entrance due to superior dirt & moisture removing capabilities.

R

INTERIOR & EXTERIOR

Suitable for use on both sides of a building's entrance, and within revolving door systems.

R

EASY TO INSTALL & MAINTAIN

Installation is quick & simple. Easy maintenance allows mats to be kept clean & in optimum condition.

R

MINIMISES CLEANING COSTS

CS mats help to prevent migration of dirt & moisture to adjacent areas, which minimises internal cleaning costs & extends the life of interior floor finishes.

PRODUCTS:

PEDIMAT ENTRANCE MATS:

Pedimat

Pedimat is an 11mm deep aluminium profile entrance matting system recommended for buildings in moderate use such as offices, shops, hotels and banks.

These long lasting mats can be surface or recess mounted, either in a ramped frame or to butt level with a surrounding carpet.  Carpet, vinyl or abrasive tread infills can be specified individually or in combination to create a bespoke design:

    • 11mm depth
    • Recommended zones: 1* and 2*
    • Suitable for recess and surface mounted installations
    • Rolls up for easy matwell cleaning
    • Open and closed spline options
    • Rolling load capability: 225kgs/wheel
    • Wide range of tread options: exterior grade carpet, interior grade carpet, abrasive, vinyl and brush inserts
    • Wide range of colour options
    • Rail finishes: clear anodised aluminium as standard, black, bronze or gold anodised optional
    • Frame options for surface and recess mounting

    * ZONE 1 (Exterior Entrance) – Immediately outside the building

  • * ZONE 2 (Primary Entrance) – Immediately inside the building

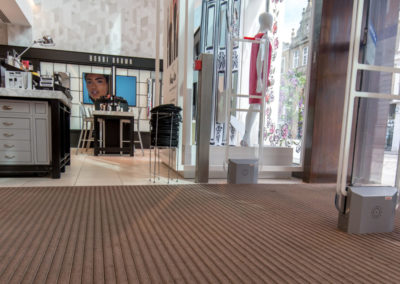

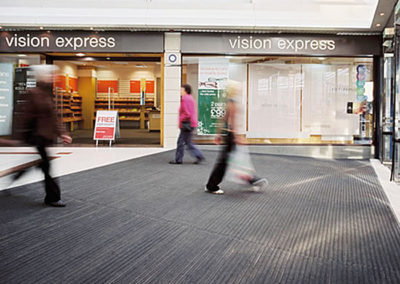

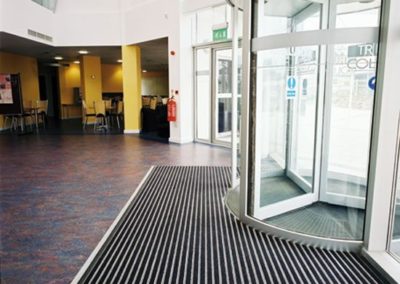

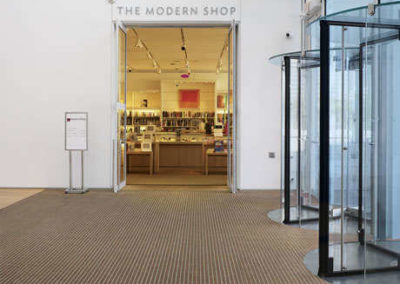

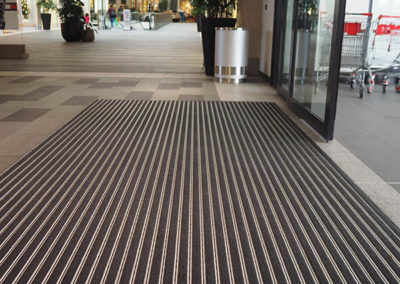

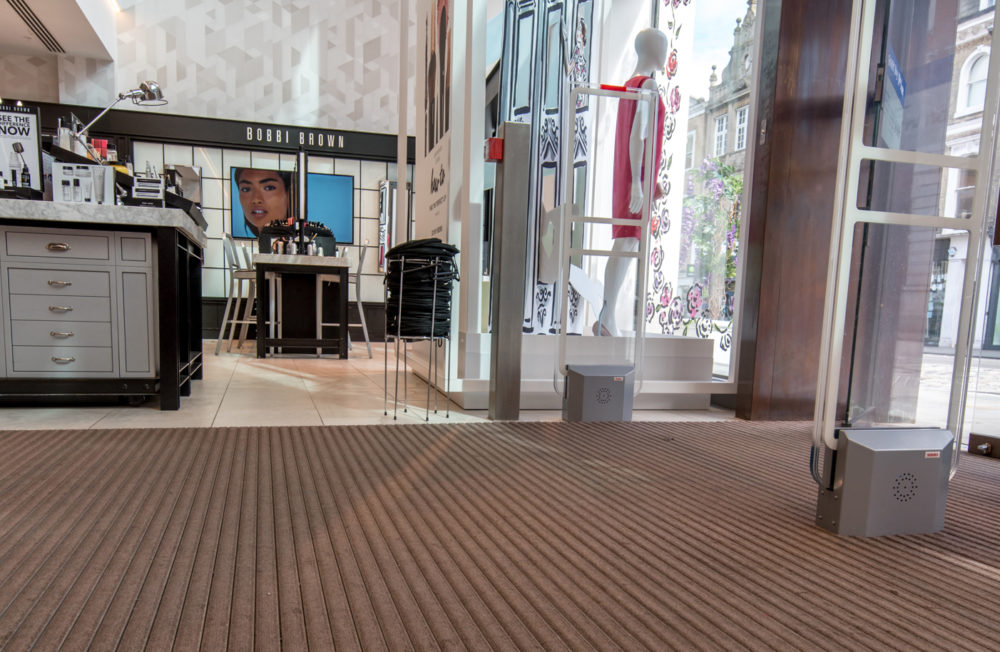

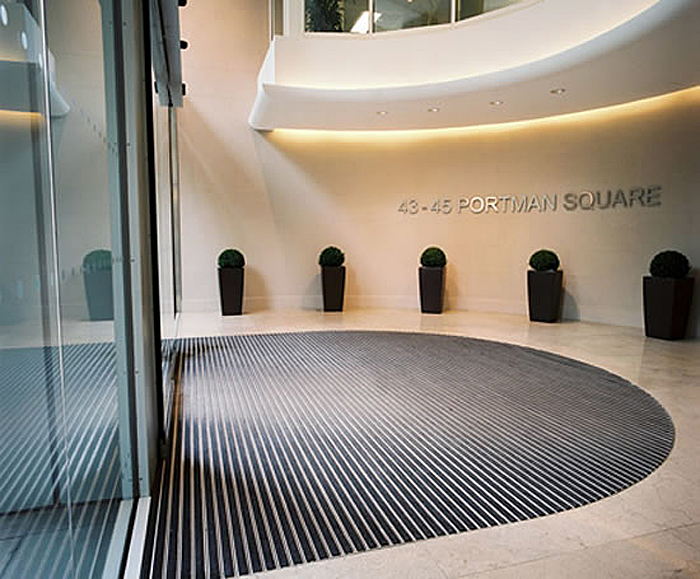

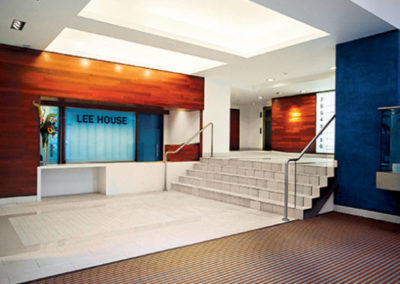

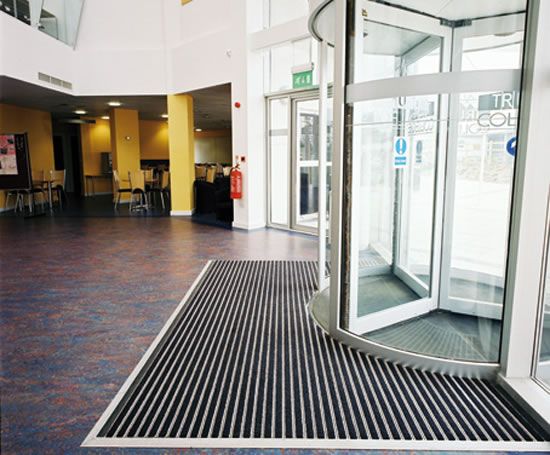

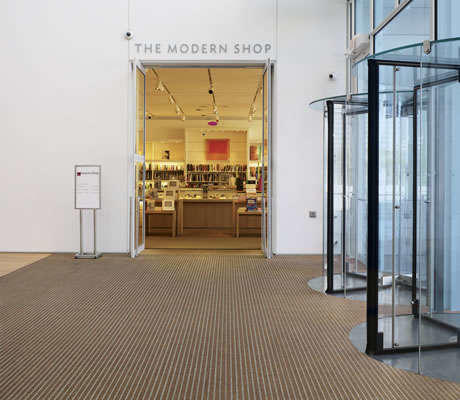

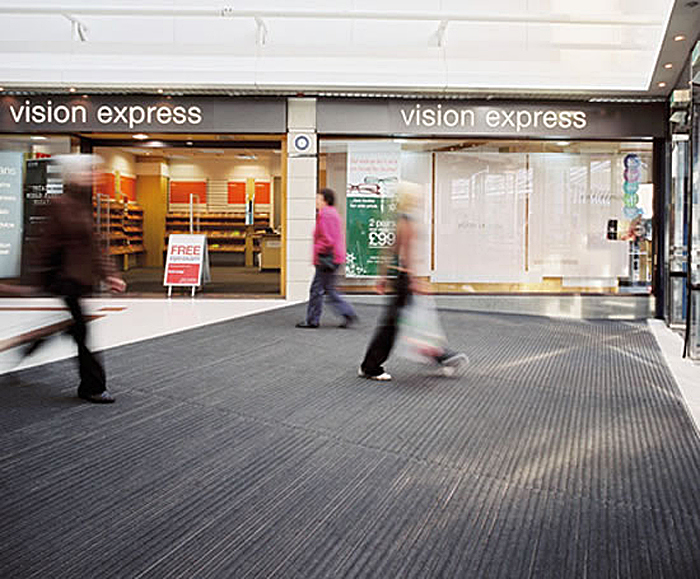

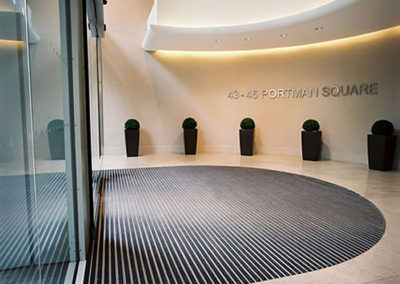

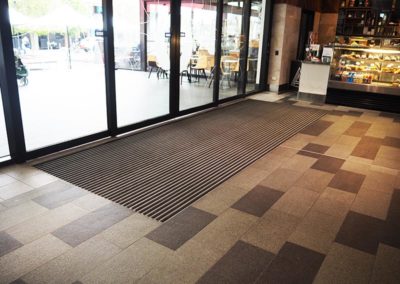

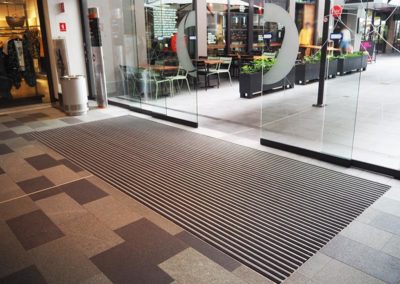

PEDIMAT GALLERY:

PEDIMAT DEPTH (mm)

%

PEDIMAT ABSORPTION AREA

%

PEDIMAT SCRAPING ABILITY

PEDIMAT ROLLING LOAD CAPACITY (kgs/wheel)

PEDILUXE ENTRANCE MATS:

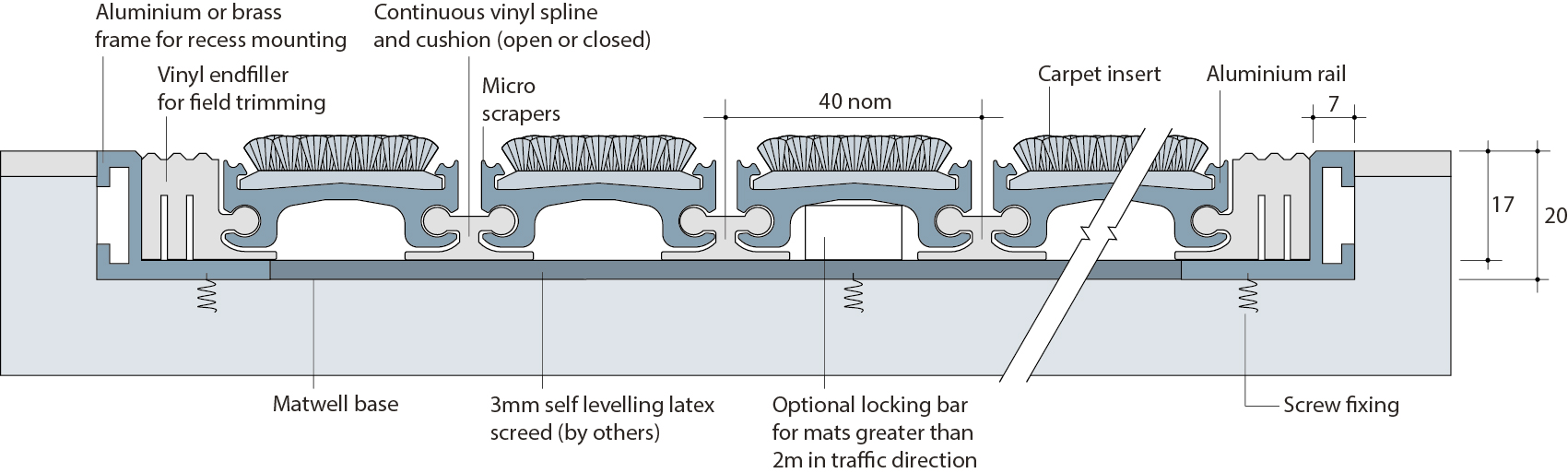

Pediluxe

Pediluxe is the most versatile of all the aluminium profile entrance matting systems. It combines rugged construction with luxury feel underfoot. Its exceptional load bearing capability makes it especially suitable for high volume areas such as shopping centres, hospitals and passenger termini.

Pediluxe is available in enough tread and colour options to satisfy the most demanding project requirements. At 17mm deep, it fits directly into most existing matwells, facilitating quick and easy installation.  C/S Pediluxe Gold, the brass rail version, offers a simply stunning quality and appearance.



    • 17mm depth
    • Recommended zones: 1* and 2*
    • Recess or surface mounted options
    • Rolls up for easy matwell cleaning
    • Open or closed spline option
    • Frame options for surface and recess mounting
    • Exceptional Rolling load capability: 500kgs/wheel
    • Tread options: exterior grade carpet, interior grade carpet, vinyl, abrasive, serrated aluminium and brush inserts
    • Rail finishes: mill finish aluminium as standard, clear anodised or black anodised
    • Field changeable inserts without the use of specialist tools for low lifecycle costs.

    * ZONE 1 (Exterior Entrance) – Immediately outside the building

  • * ZONE 2 (Primary Entrance) – Immediately inside the building

PEDILUXE GALLERY:

PEDILUXE DEPTH (mm)

%

PEDILUXE ABSORPTION AREA

%

PEDILUXE SCRAPING ABILITY

PEDIMAT ROLLING LOAD CAPACITY (kgs/wheel)

PEDIGRID ENTRANCE MATS:

Pedigrid

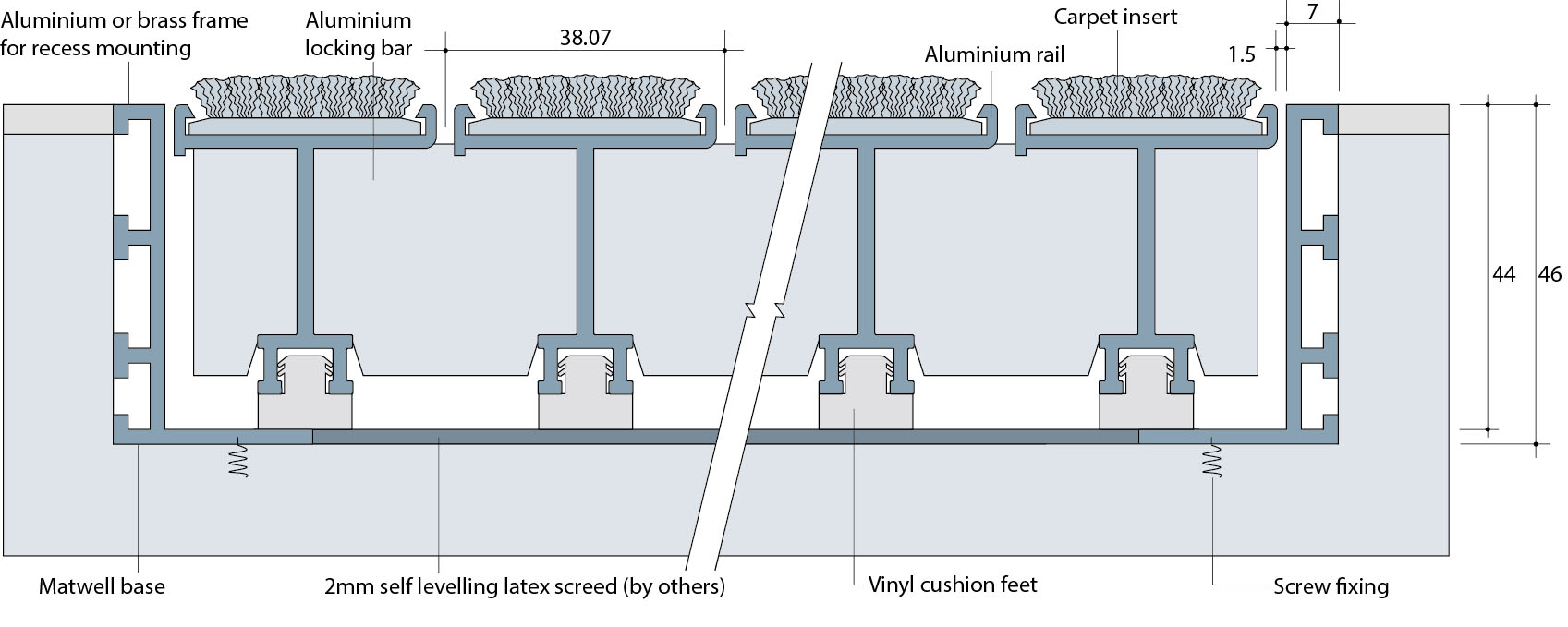

Pedigrid is an entrance matting system with a removable grille section that allows water and dirt to fall between treads into a drainable well below. Pedigrid entrance mats are designed exclusively for recessed installations.  The advantage of a deep matwell (44mm depth) is reduced cleaning and maintenance.

Pedigrid entry mats are purpose built according to specific modular dimensions and shapes for your project.  The system is especially suitable for new construction, where there will be high foot traffic such as hospitals, shopping centres and transport hubs including airports and train stations.

    • 44mm deep well
    • Recommended zones: 1 and 2
    • Suitable for recessed installations only
    • Purpose made to specific project requirements
    • Rolling load capability: 165kgs/wheel
    • Tread options: exterior grade carpet, interior grade carpet, abrasive, vinyl, serrated aluminium and brush inserts
    • Rail finish options: mill finish aluminium as standard
    • Available in 12 different tread finishes, in a variety of colours
    • Suitable for high volume pedestrian traffic
    • Recess mounted frames and T-frames available

    * ZONE 1 (Exterior Entrance) – Immediately outside the building
    * ZONE 2 (Primary Entrance) – Immediately inside the building

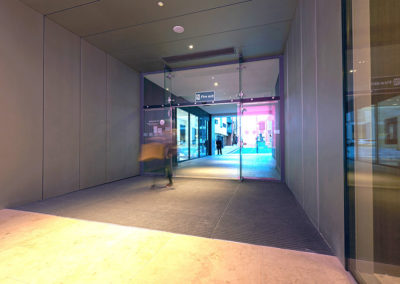

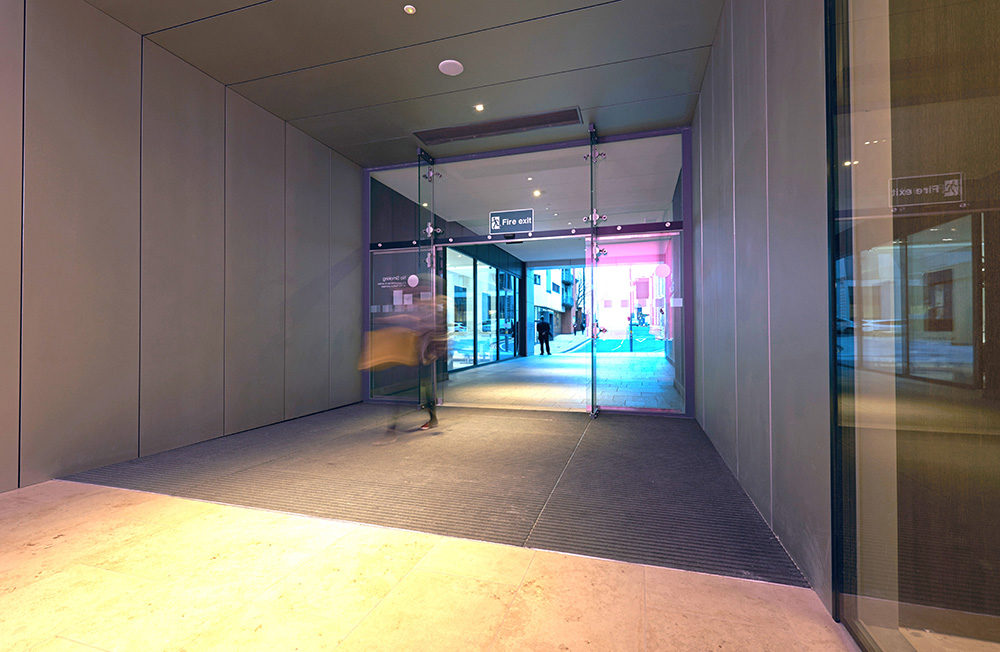

PEDIGRID GALLERY:

PEDIGRID DEPTH (mm)

%

PEDIGRID ABSORPTION AREA

%

PEDIGRID SCRAPING ABILITY

PEDIGRID ROLLING LOAD CAPACITY (kgs/wheel)
