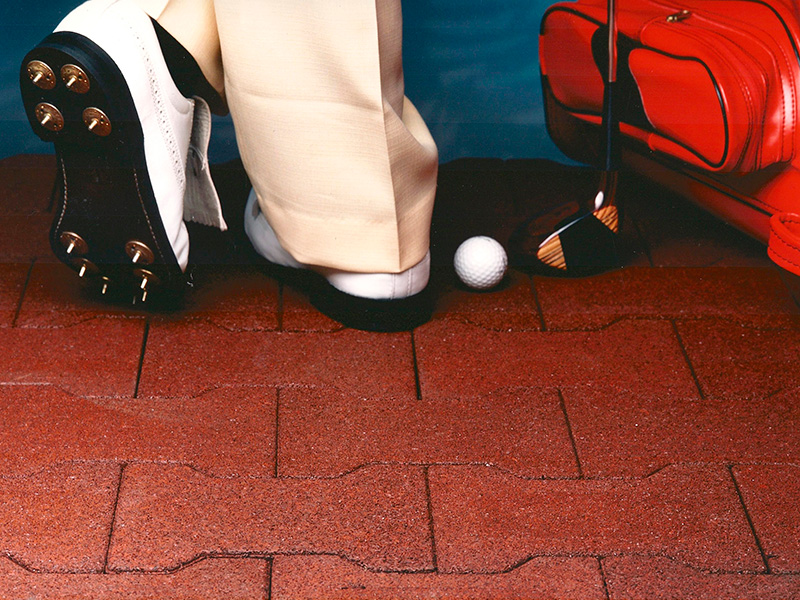

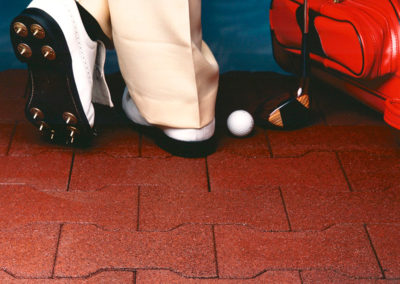

Regupol impact protection tiles & pavers are designed to absorb SHOCK, NOISE & IMPACT, especially in injury prone settings. They help to protect joints and bones from the forces of impact; and provide a slip-resistant surface, even in wet conditions. Injury prone areas include playgrounds, recreation zones, day-care centres and aged care facilities.  The tiles and pavers are also suitable for golfing facilities, where flooring surfaces must be tough enough to withstand the severity of spiked golf shoes. Installing special impact protection surfaces helps to safeguard against injury when accidents do occur.

IMPACT PROTECTION SURFACES: Rubber Tiles & Pavers

PLAYGROUNDS | GOLF FACILITIES | RECREATION AREAS



Regupol impact protection tiles & pavers are designed to absorb SHOCK, NOISE & IMPACT, especially in injury prone settings. They help to protect joints and bones from the forces of impact; and provide a slip-resistant surface, even in wet conditions. Injury prone areas include playgrounds, recreation zones, day-care centres and aged care facilities.  The tiles and pavers are also suitable for golfing facilities, where flooring surfaces must be tough enough to withstand the severity of spiked golf shoes. Installing special impact protection surfaces helps to safeguard against injury when accidents do occur.

ProductsBrochure

CHOOSE A TYPE OF IMPACT PROTECTION SURFACE



R

TOUGH

Extremely hard wearing with long service life.

R

ABSORBS IMPACT

Helps to protect joints & bones against the forces of impact.

R

WEATHER PROOF

Impervious to moisture, sunlight, heat & frost. Quick drying after rain.

R

SLIP RESISTANT

Helps to maintain safety in accident prone areas.

R

RECYCLED & RECYCLABLE

Made from sustainable materials and able to be recycled at the end of its service life.

R

TESTED FOR HEAVY METALS

Independently tested for heavy metals by “Chemo-Test” Test Institute. Complies with DIN EN 1177.

R

FAST INSTALLATION

The tiles & pavers are quick and easy to install & remove by novice or professional. Easy to replace small sections if vandalised.

REGUPOL® IMPACT PROTECTION TILES & PAVERS

Ideal for injury prone areas and recreational applications!

PRODUCTS:

REGUPOL SAFETY TILE FX:

GYM INSTALLATION

View the installation of FX50 pavers in a designated weight-lifting area within a popular Perth Gym.

Tile FX

Safety Tile FX guarantees the highest possible standard for safety tiles:

  • Suitable for falling heights of up to 2.8m, making it ideal for Rock Climbing, Playgrounds and Outdoor Recreation Facilities.
  • Unique composition of rubber fibres and two-layered structure comprising of heavy duty top layer and soft basic layer for fall protection.
  • Available in three thicknesses: 50mm, 75mm & 100mm.
  • Provides good shock, noise and impact absorption.
  • Available in two colours: terracotta & black.
  • Anti-stumble edging can be used to create safe edges.
  • Long service life.
Material & Colours
  • PUR-bonded rubber fibres, solid-coloured wear layer. The solid coloured wear layer is available in terracotta or black. Available in two colours, terracotta & black, which can be used in combination to create attractive patterns. The base layer is black.
Composition
  • Dual-layer construction with compacted, heavy-duty wear layer and soft base layer for fall protection
  • Drainage & cable grooves on underside
  • Dowel holes at edges.
  • Dummy joint on top at 500mm
Suggested Application Areas
  • Rock climbing centres
  • Children’s play areas
  • Schools
  • Childcare centres
  • Outdoor recreation areas
  • Fitness clubs
  • Resorts
  • Caravan parks

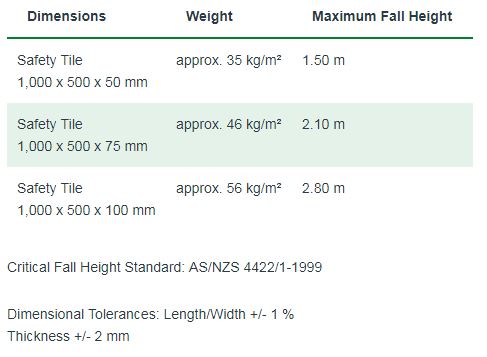

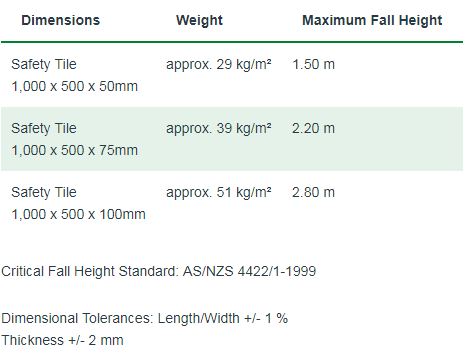

Dimensions

REGUPOL SAFETY TILE EPDM:

Tile EPDM

Safety Tile EPDM offers the same, top-level fall protection as Safety Tile FX, however this tile offers a much broader choice of colours :

  • Suitable for falling heights of up to 2.8m, making it ideal for Rock Climbing, Playgrounds and Outdoor Recreation Facilities.
  • Unique composition of EPDM  rubber fibres and two-layered structure comprising of heavy duty top layer and soft basic layer for fall protection.
  • Available in three thicknesses: 50mm, 75mm & 100mm.
  • Provides good shock, noise and impact absorption.

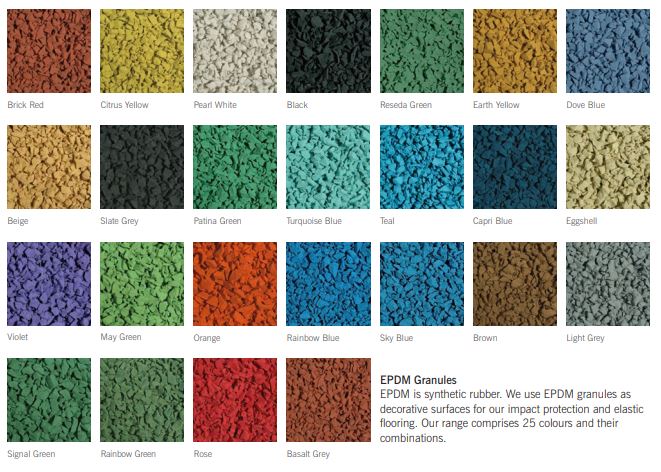

  • Available in 25 colours.
  • Anti-stumble edging can be used to create safe edges.
  • Long service life.
Material & Colours
  • PUR-bonded rubber fibres, PUR-bonded, coloured EPDM granules. The solid coloured wear layer is available in 25 colours. Colours can be used in combination to create attractive patterns. The base layer is black.

Composition
  • Dual-layer construction with approx. 11-mm-thick compacted, heavy-duty EPDM wear layer and soft base layer for fall protection
  • Drainage & cable grooves on underside
  • Dowel holes at edges.
  • Dummy joint on top at 500mm
Suggested Application Areas
  • Rock climbing centres
  • Children’s play areas
  • Schools
  • Childcare centres
  • Outdoor recreation areas
  • Fitness clubs
  • Resorts
  • Caravan parks
Dimensions

REGUPOL ELASTIC TILE E:

Elastic Tile E

Elastic Tile E is identical to Safety Tile FX in terms of material, shape & colour but without the tested falling protection properties :

  • Offers safety in wet & dry conditions, along with excellent shock & sound absorbency, making this tile ideal for outdoor ramps, loading docks, weight rooms, keg drops and pedestrian walkways.
  • The tile’s impact sound absorption characteristics substantially reduce impact noise from balls, weights & footfall.
  • An excellent rubber matting alternative for underneath gym equipment.
  • Available in three thicknesses: 50mm, 75mm & 100mm.
  • Available in two colours: terracotta & black.
  • Anti-stumble edging can be used to create safe edges.
  • Long service life.
Material & Colours
  • PUR-bonded rubber fibres or granules, solid-coloured.
  • Can be installed in different patterns such as traditional running bonds or 45 degree stacks, which look stunning on terraces & balconies.
  • Available in two colours: terracotta & black which can be combined to create borders or checkerboard patterns.



Composition
  • Single-layer construction consisting of compacted, heavy-duty material.
  • Drainage & cable grooves on underside
  • Dowel holes at edges.
  • Dummy joint on top at 500mm
Suggested Application Areas
  • Gyms, fitness centres & weight rooms
  • Outdoor ramps
  • Loading docks
  • Pedestrian walkways

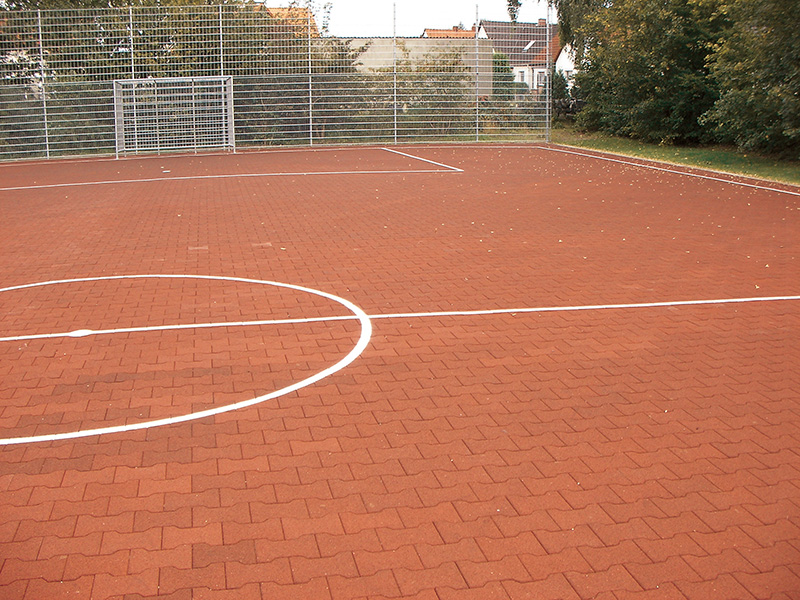

  • Football areas & streetball pitches
  • Keg drops
  • Railway stations
  • Golf clubs
  • Equine surfacing
  • Zoos & parks
  • Outdoor patios
  • Community areas
  • Resorts
  • Caravan parks

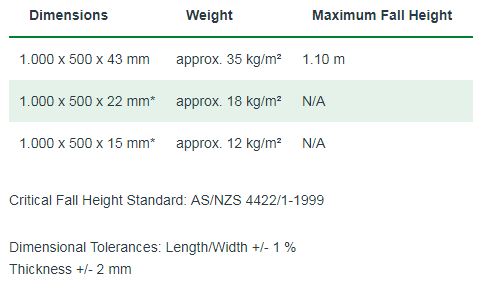

Dimensions

REGUPOL INTERLOCKING PAVERS:

Interlocking Pavers

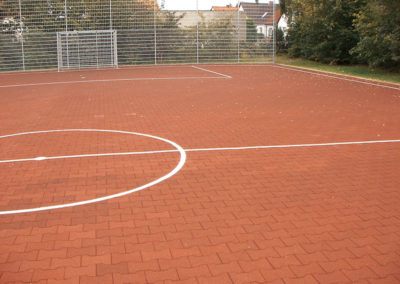

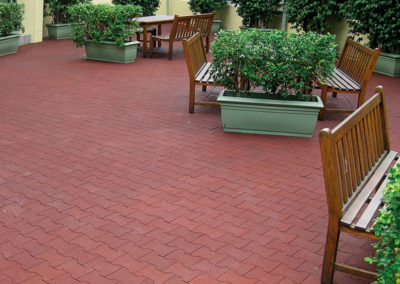

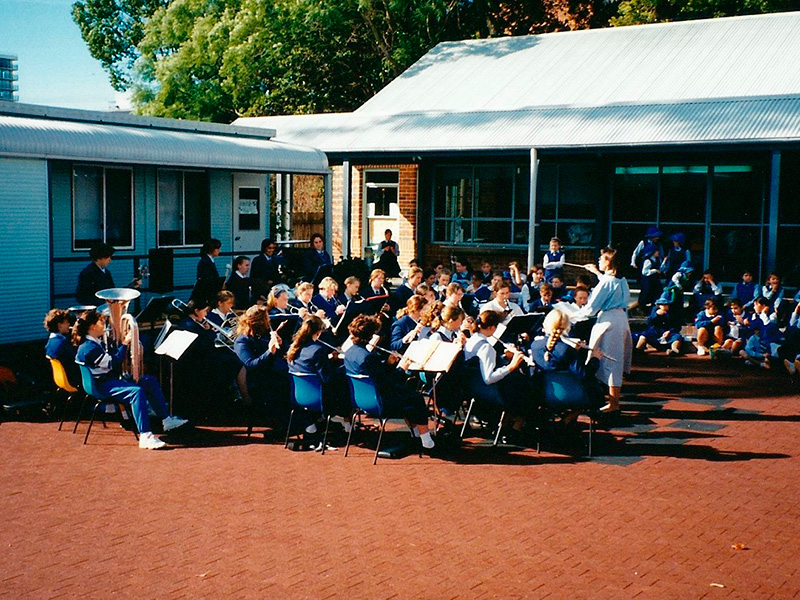

The cobblestone effect created by Regupol Interlocking Pavers adds aesthetic appeal to any area. The rubber pavers offer excellent impact sound absorption and comfort underfoot. Some of the main features include:

  • Very quiet underfoot, impact sound absorbing.
  • Extremely resilient & durable, even under tough conditions – including vehicular traffic ((where a proper sub-base is provided).
  • Super anti-slip in wet and dry conditions.
  • Manufactured from recycled rubber, making it a sustainable way to provide safe surfaces to the community.
  • Available in two thicknesses: 21mm & 43mm.
  • Available in two colours: terracotta & black.
  • Suitable for all outdoor areas for example: pathways, parks, zoos, gold clubs and equine facilities.
  • Long service life.
Material & Colours
  • PUR-bonded rubber fibres, solid-coloured
  • Available in two colours: terracotta & black
Composition
  • Single-layer construction of homogeneous material.
Suggested Application Areas
  • Pathways

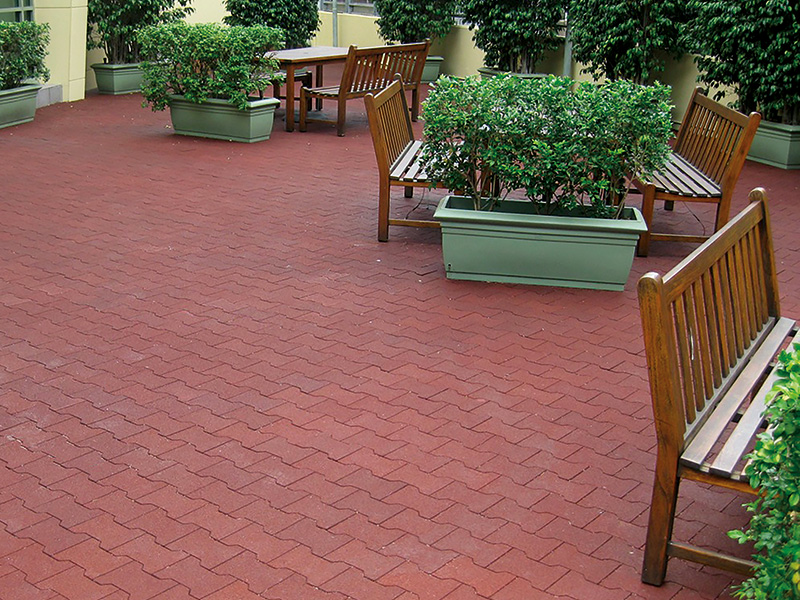

  • Patios
  • Parks
  • Zoos
  • Golfing facilities
  • Equine facilities
  • Balconies
  • Terraces
  • Driveways
  • Railway stations

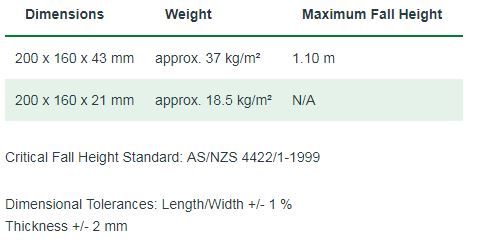

Dimensions

REGUPOL REDUCER EDGING:

Anti-Stumble Edging

Regupol reducer edging is used to create a safe, anti-stumble transition at the edge of Regupol tiles and pavers. The bevelled shape helps to minimise stumbling accidents, especially around playgrounds.

  • Very quiet underfoot, impact sound absorbing.
  • Extremely resilient & durable, even under tough conditions – including vehicular traffic.
  • Super anti-slip in wet and dry conditions.
  • Manufactured from recycled rubber, making it a sustainable way to provide safe surfaces to the community.
  • Available in two thicknesses: 21mm & 43mm.
  • Available in two colours: terracotta & black.
  • Suitable for all outdoor areas for example: pathways, parks, zoos, gold clubs and equine facilities.
  • Long service life.
Material & Colours
  • PUR-bonded rubber fibres, solid-coloured or PUR-bonded solid-coloured EPDM granules
  • Rubber fibres in Terracotta and Black. EPDM granules in selected colours
Suggested Application Areas
  • Enclosure of impact protection surfaces, providing a bevelled edging to other surfaces.

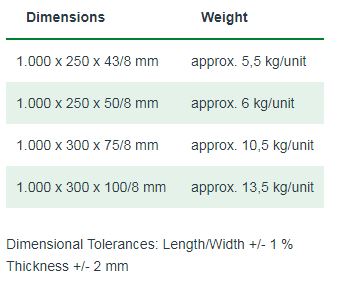

Dimensions

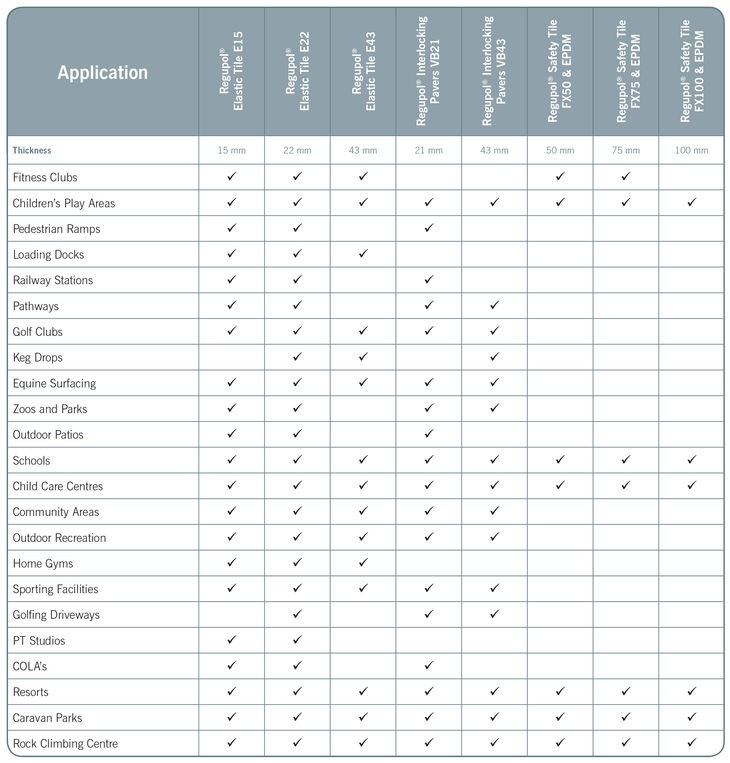

PRODUCT SELECTOR

A Long Track Record

Regupol Tiles & Pavers have been used across Australia for 20+ years!

ELASTICITY = COMFORT

The elasticity of Regupol tiles & pavers provides a pleasant walking sensation, similar to the feeling of walking on grass.
