HANDRAILS

SAFETY, FUNCTIONALITY & STYLE for PUBLIC AREAS

CS Handrails deliver on safety, functionality and style and are highly suitable for both contemporary and traditional interiors. CS handrails are available in a range of colours and finishes, from the simple Acrovyn handrail, to the sustainable timber handrail with stainless steel accessories.  All CS handrails are suitable for public environments.

HANDRAILS

SAFETY, FUNCTIONALITY & STYLE for PUBLIC AREAS

CS Handrails deliver on safety, functionality and style and are highly suitable for both contemporary and traditional interiors. CS handrails are available in a range of colours and finishes, from the simple Acrovyn handrail, to the sustainable timber handrail with stainless steel accessories.  All CS handrails are suitable for public environments.

.



BrochuresColours

Featured Projects

recent handrail projects

Take a look to see what we are capable of. Our handrail experts have a wealth of experience with many types of commercial projects throughout Western Australia. Here are just a couple to give you an idea.

ACROVYN® HANDRAILS

Pedestrian support combined with impact protection!

CUSTOM SOLUTIONS TO SUIT PROJECT REQUIREMENTS:

World Renowned Acrovyn

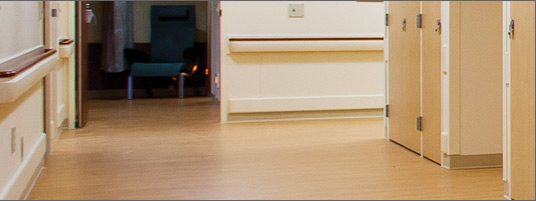

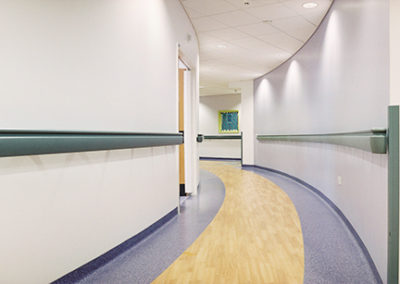

Acrovyn handrails are available in numerous designs and can be combined with crash rails. A combined system handrail / crashrail system can offer pedestrian support along with severe duty impact protection. The ability to choose from a wide selection of colours or colour combinations, makes it easy to specify a handrail system that suits specific project requirements.

Acrovyn is FREE from:

PVC
PBTs (Persistent Bioaccumulative Toxins)
BPA (Bisphenol A)
Halogenated fire-retardants

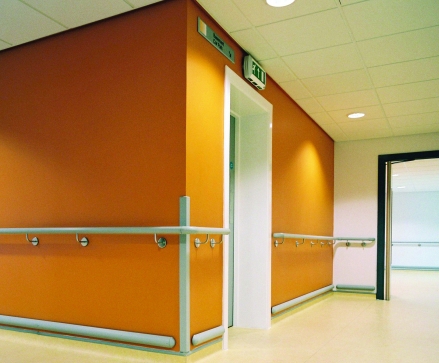

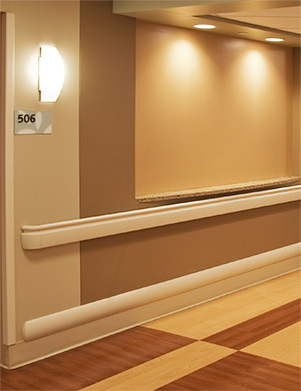

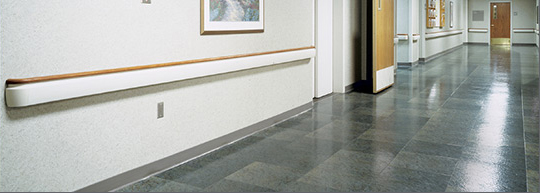

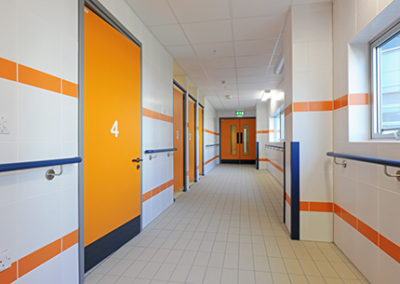

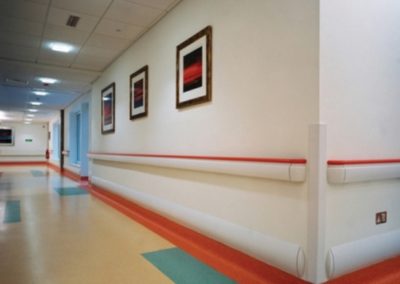

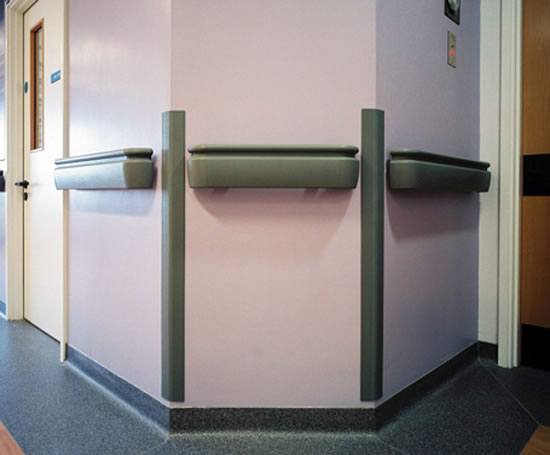

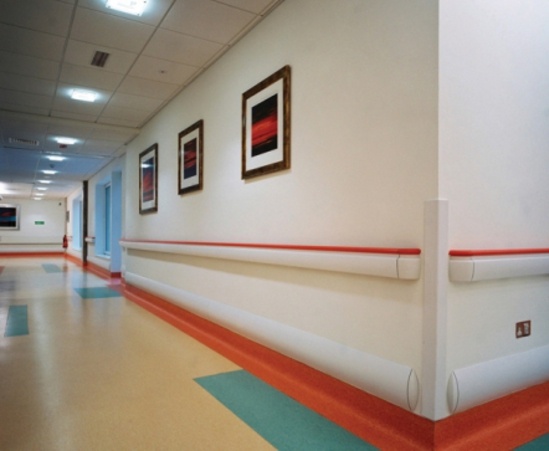

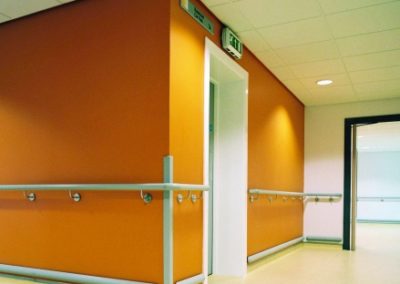

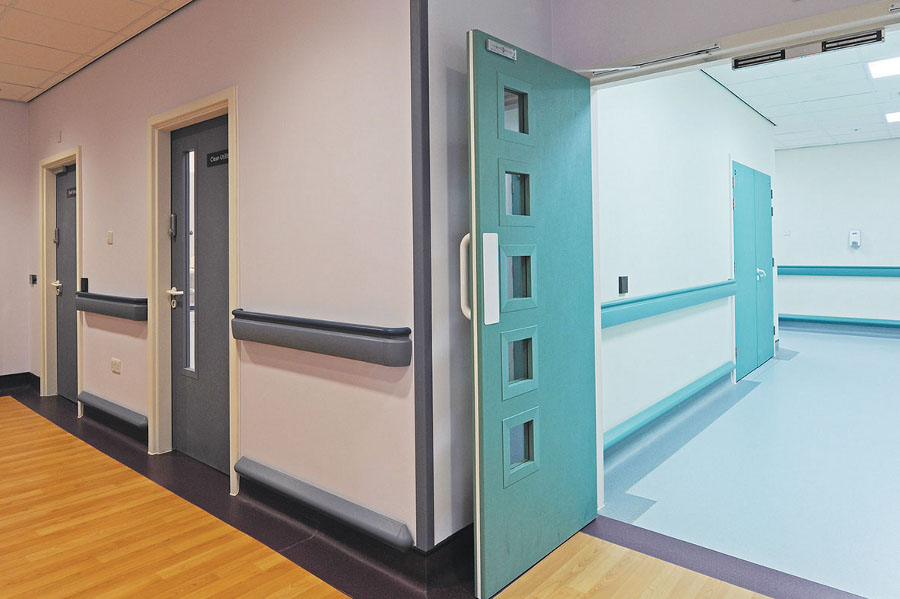

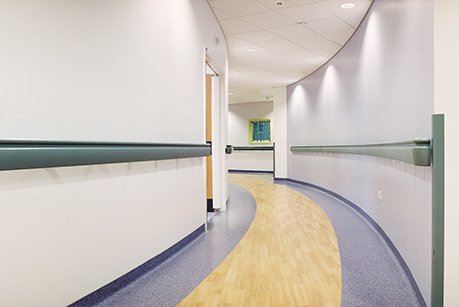

INSPIRATION GALLERY

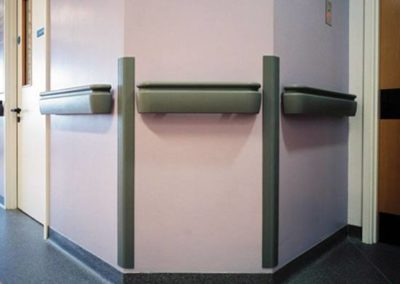

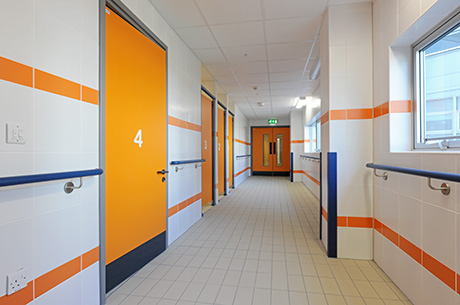

Acrovyn Handrails



PRODUCTS

Acrovyn Handrails

HRB-10CN

A 158mm high handrail, featuring an integrated Acrovyn crash rail with continuous shock absorbing bumper. The HRB-10CN Hand rail offers numerous design options allowing designers to integrate up to three different colourways in each handrail. Available with a psychiatric bracket enclosure to ensure patient safety.

Standard Details
  • Profile Height: 158mm
  • Overall Projection: 76mm

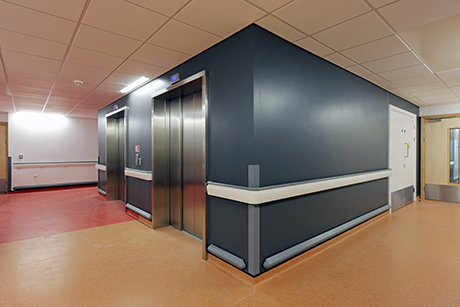

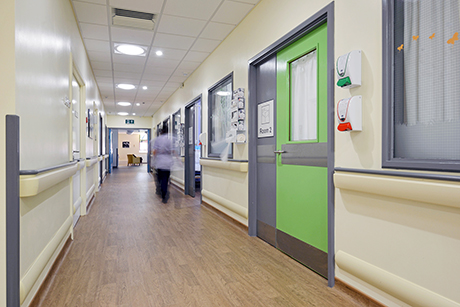

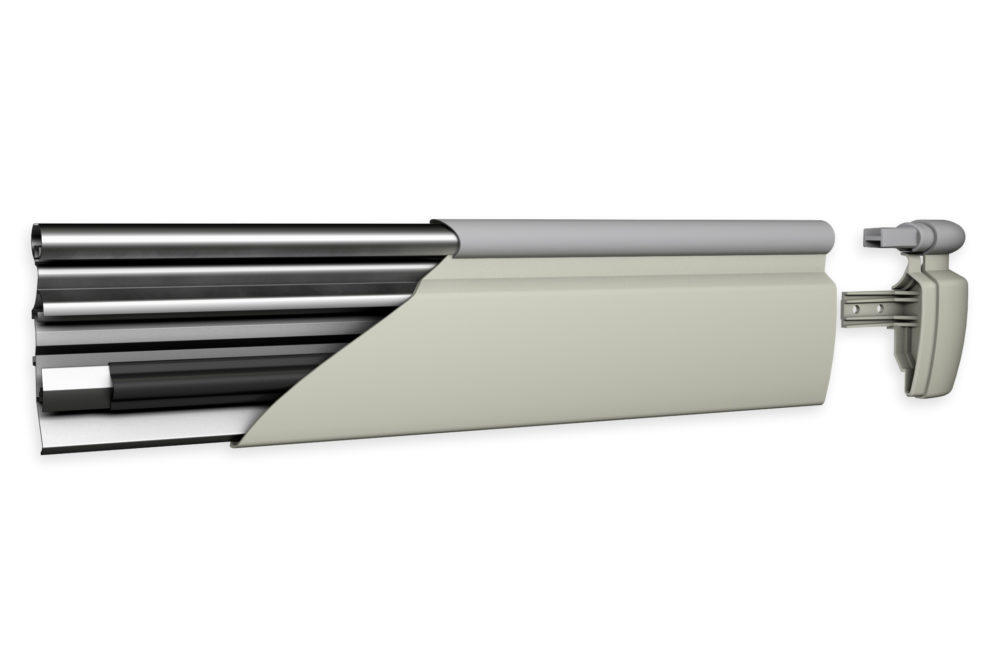

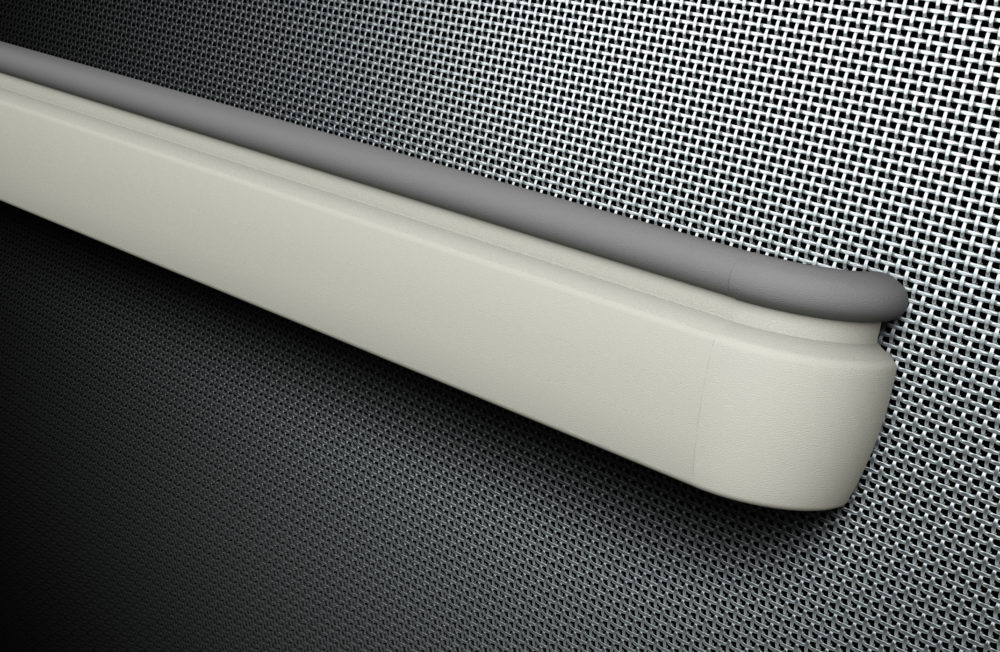

HRB-20N Series

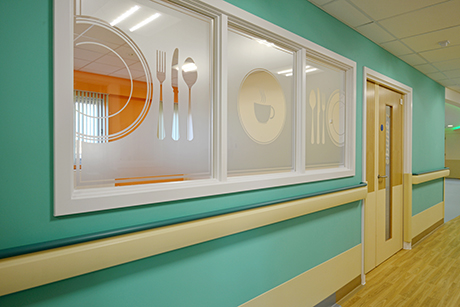

Our most popular Acrovyn® combined handrail & crashrail offering robust pedestrian support and severe duty impact protection. The HRB-20N series allows designers to use two different Acrovyn® colours to provide essential visual contrast between the handrail and the crashrail. The impact resistant Acrovyn® cover and shock absorbing bumper allow the HRB-20N to withstand the heaviest of knocks from hospital beds, trolleys and wheelchairs.

Why use HRB-20N Series?
  • 335° grip surface for pedestrian support
  • protect vulnerable walls from impact damage
  • avoid wall damage and cut maintenance costs
  • use 2 colours to provide visual contrast
  • simple installation with Rapid Fix™ brackets
  • effective against trolleys, beds, and more

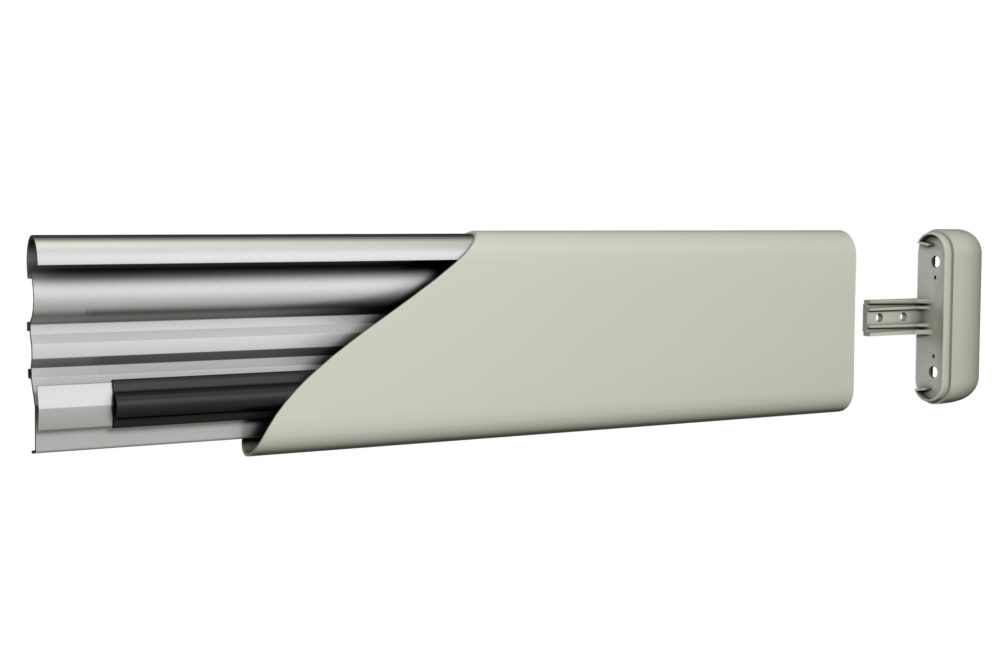

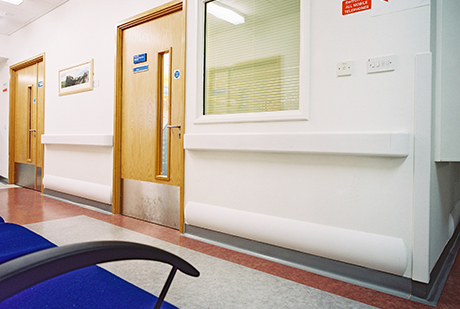

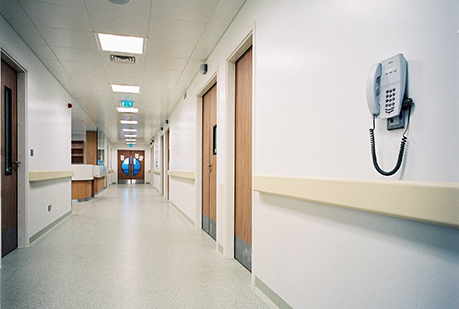

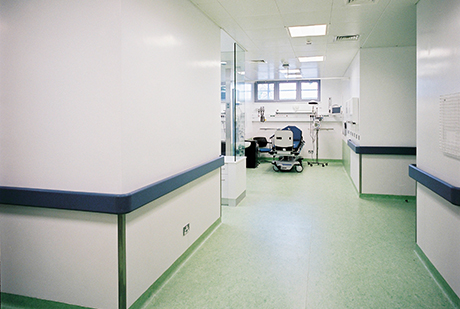

HRB-4CN Series

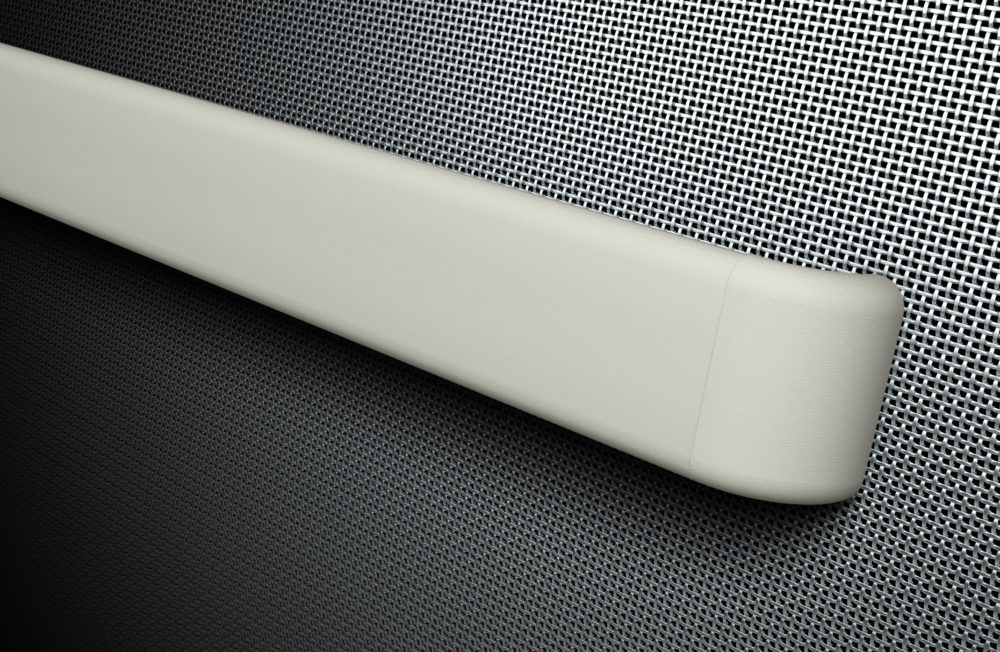

The original Acrovyn® hand/crashrail, offering a classic, flat profile aesthetic. The HRB-4CN features a single piece, impact resistant Acrovyn® cover which flexes on impact, allowing it to withstand heavy impact. The flat, easy to clean Acrovyn® surface makes it perfect for busy public areas.

Why use HRB-4CN Series?
  • 210° grip surface for pedestrian support
  • protect vulnerable walls from impact damage
  • effective against trolleys, beds, and more
  • avoid wall damage and cut maintenance costs
  • available with 3 mounting options
  • environmentally friendly Acrovyn® 4000
  • simple installation with Rapid Fix™ brackets
  • can be used as a low level wall crashrail
Standard Details
  • Single piece Acrovyn® cover over continuous aluminium retainer
  • Free-floating design flexes on impact
  • Shock-absorbing bumper cushion for increased impact protection.
  • Rapid Fix™ brackets in two stand-off options for easy installation
  • HRB4C(AL) – anti-ligature option featuring continuous bracket
  • Available in Acrovyn® or PVC-Free Acrovyn® 4000
  • Acrovyn End Caps and External Corners

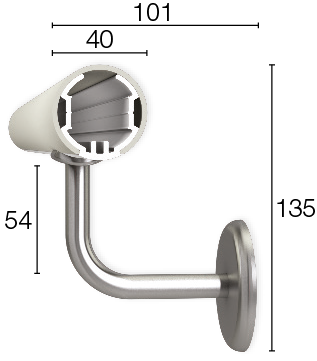

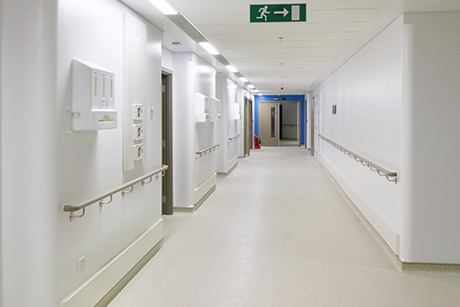

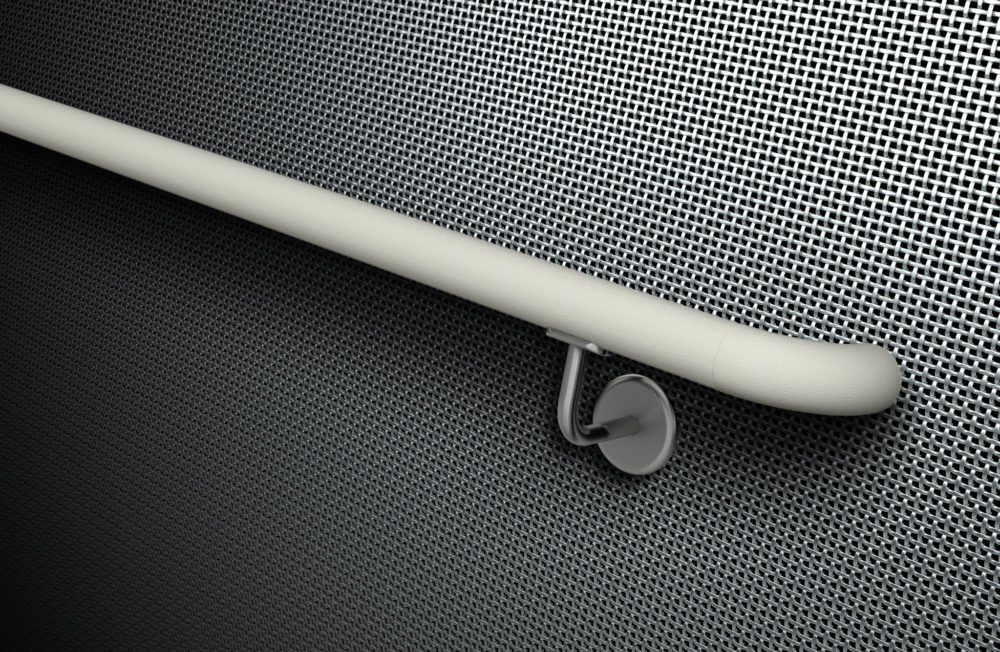

HR-6CN Handrail

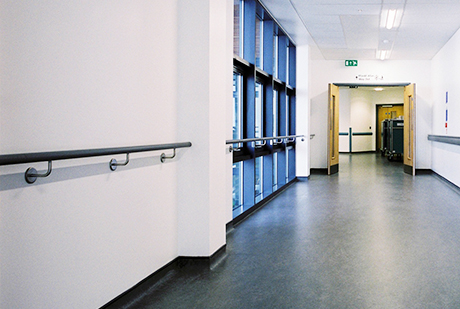

The HR-6CN is the latest addition to our handrail range, offering pedestrian support in an environmentally friendly profile. The 40mm Ø handrail features Acrovyn® 4000, PVC-Free cover over aluminium retainer and is mounted on stainless steel brackets.

Why use HR-6CN Handrail?
  • 40mm Ø handrail for easy grip
  • 101mm projection from wall for easy grab
  • available in PVC-Free Acrovyn® 4000 only
  • durable cover hides scratches and abrasions
  • grooveless circular retainer for ease of cleaning
  • withstands knocks from lightweight equipment
Features
  • 40mm Ø handrail with Acrovyn® 4000 cover over continuous aluminium retainer
  • Mounted on stainless steel brackets
  • Acrovyn® return to wall end caps and external/internal corners
  • Grooveless circular aluminium retainer for ease of cleaning
  • Available in Acrovyn® 4000 only
Standard Details
  • Overall height: 142mm
  • Overall projection: 101mm
  • Stock Length: 3000mm
  • Fixings: 800mm maximum centres

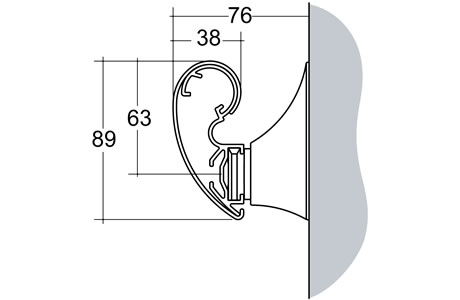

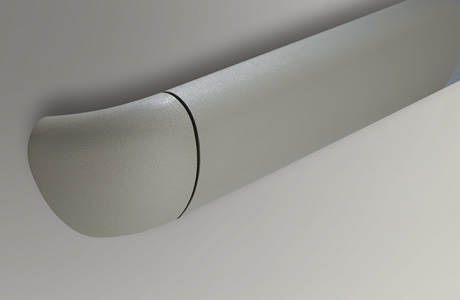

HRB-35N

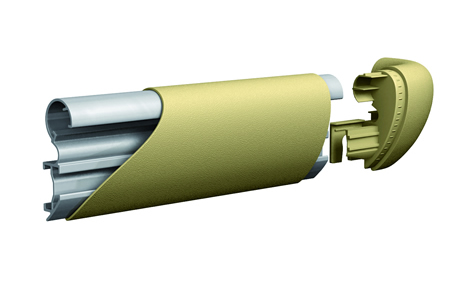

Combined 38mm handrail and 89mm deep curved crash rail featuring an impact resistant Acrovyn® cover. Available in 40 colours the HRB-35N hand/crashrail will complement any design. Featuring Rapid Fix brackets, the HRB-35N can be installed quickly and efficiently, whilst also being easy to remove for access to the wall behind.

Why use HRB-35N Handrail?
  • 335° grip surface for easy grab
  • free-floating design flexes on impact
  • Acrovyn cover & continuous aluminium retainer
  • external corners can be accommodated
  • colour matched rapid fix brackets
  • easy and fast installation with Rapid Fix brackets
Accessories
  • mounting bracket
  • standard end caps, 135 corners
  • splice plate
  • removable kit for service duct
  • quick install spanners

RENAISSANCE HANDRAILS

Pedestrian support with wood & stainless steel!

A NATURAL AND CONTEMPORARY LOOK:

Combine Style & Performance with Wood & Stainless Steel

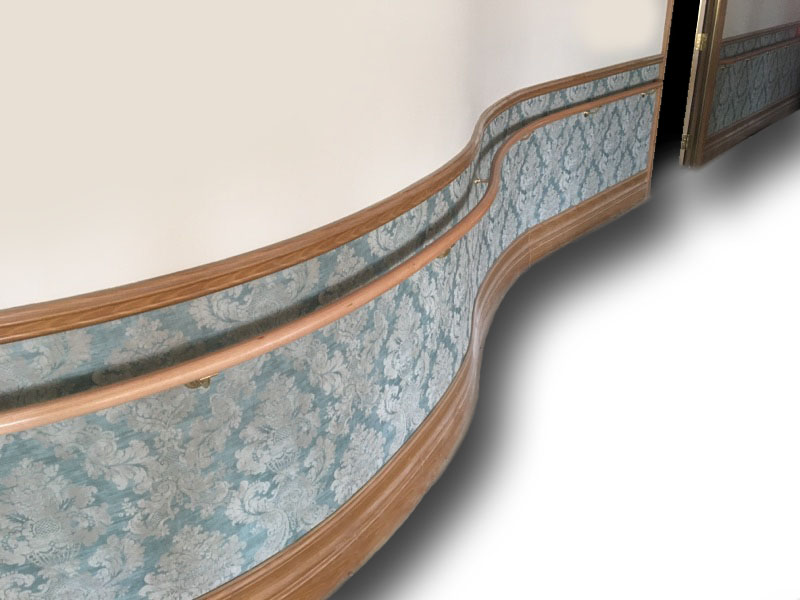

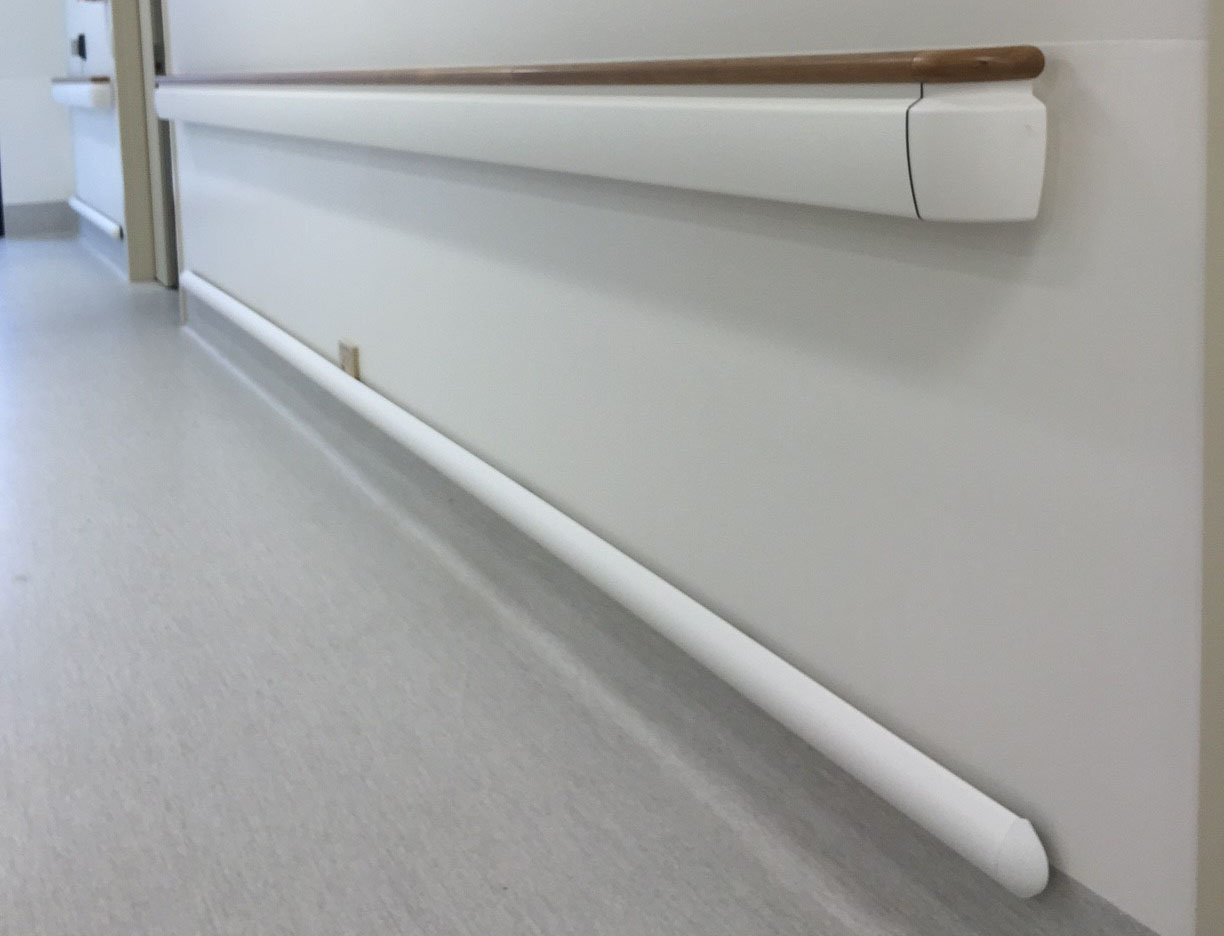

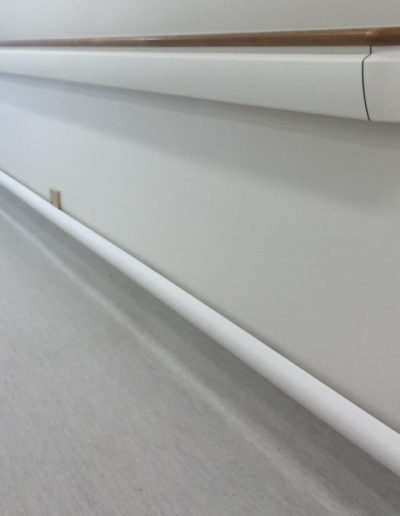

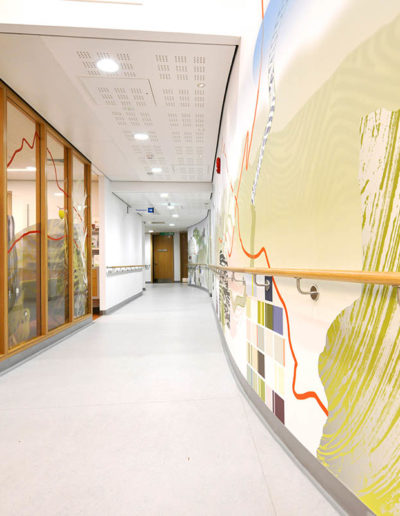

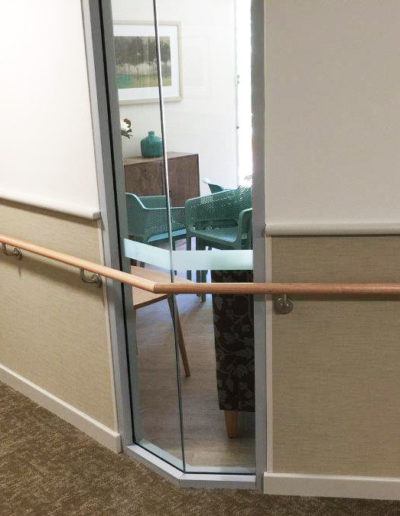

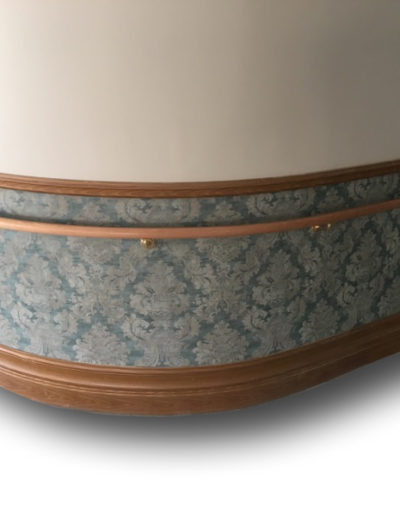

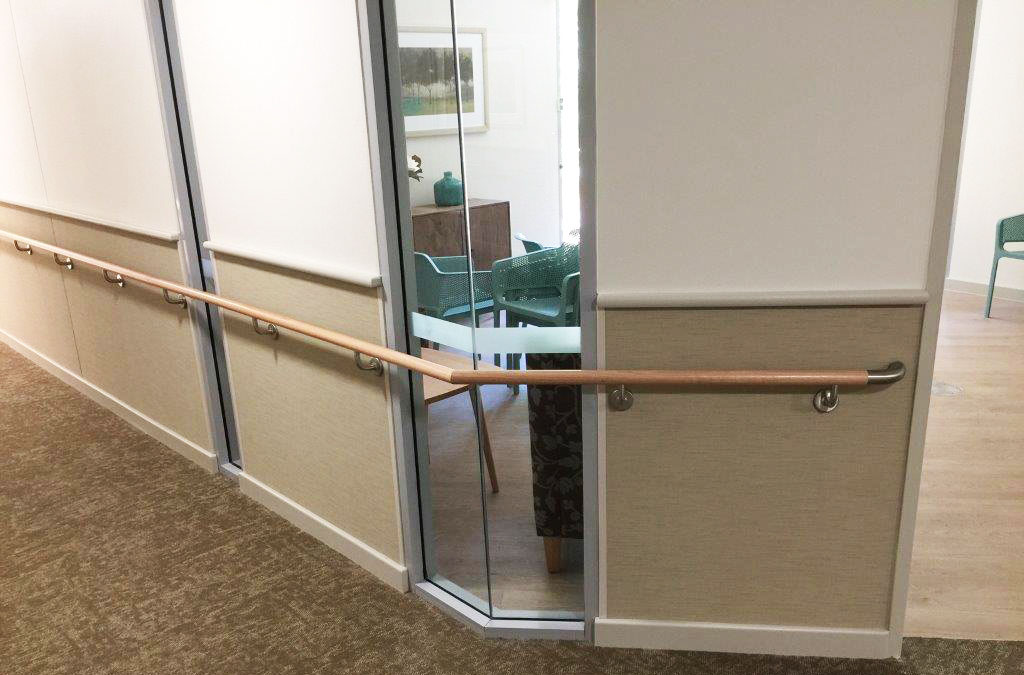

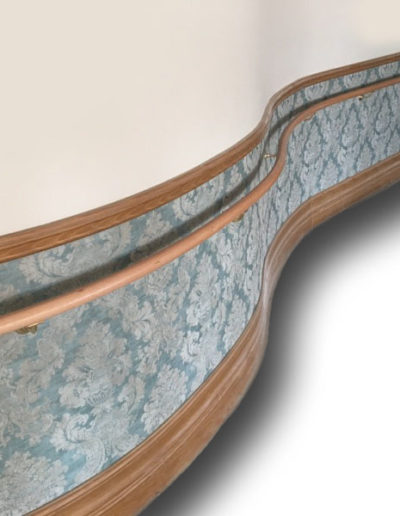

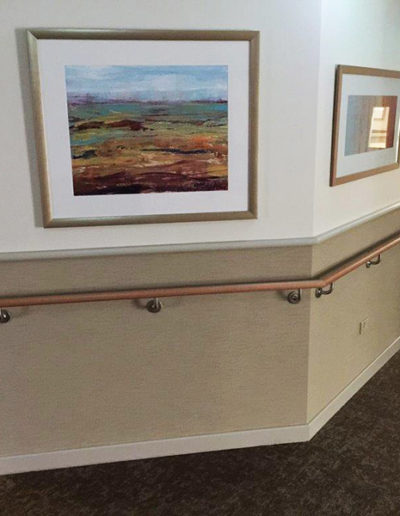

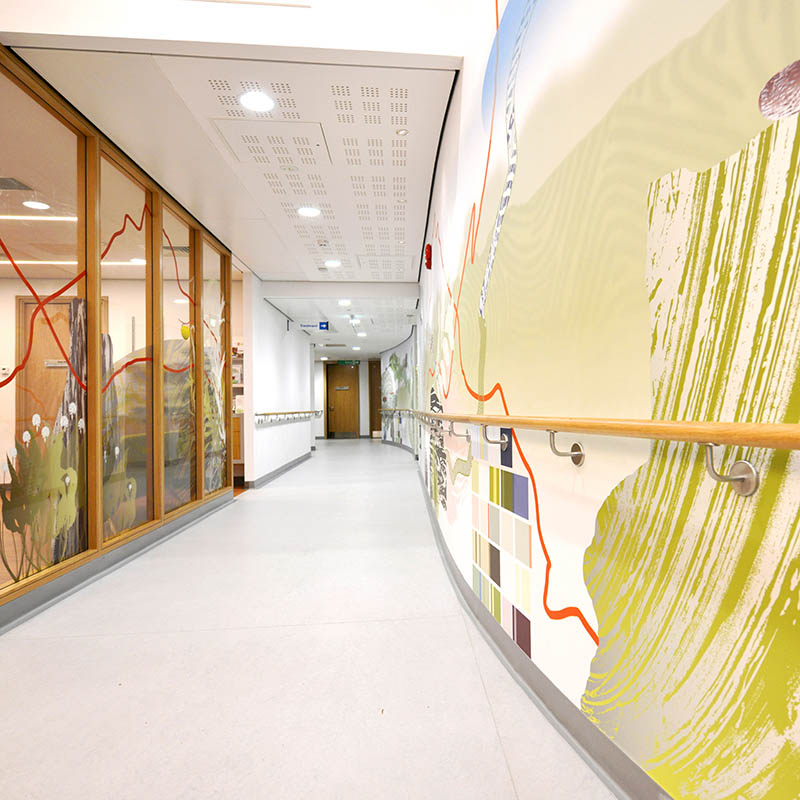

The Renaissance range offers a stylish wooden and stainless steel finish providing a natural, modern look whilst offering pedestrian support in public areas. Ideal for both modern and traditional interiors.

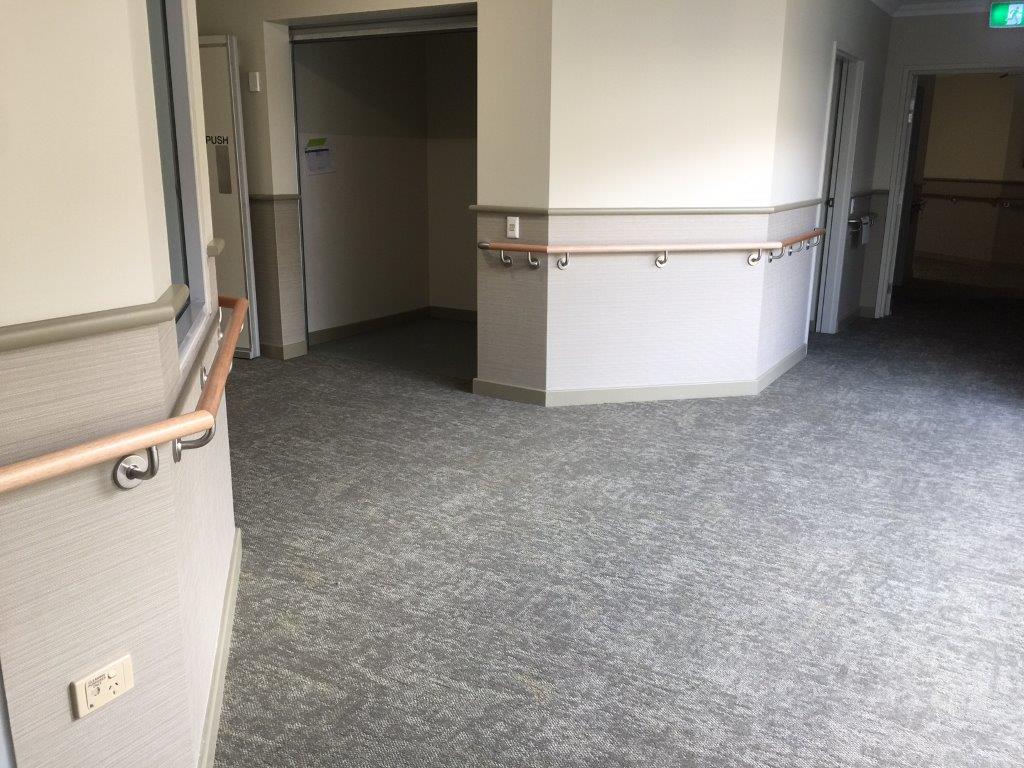

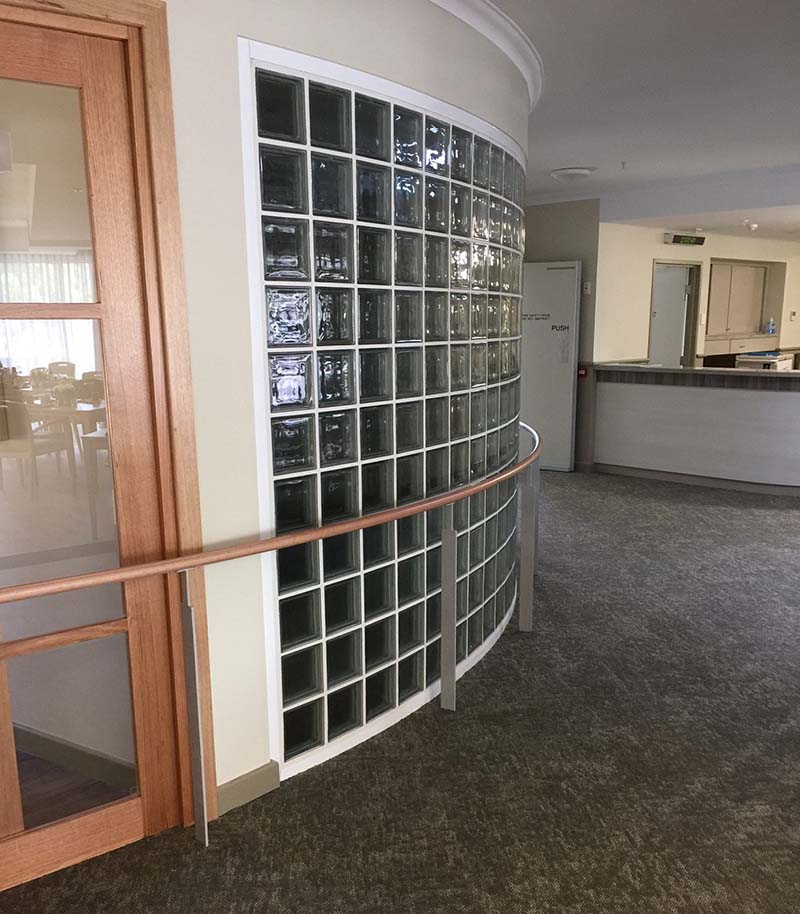

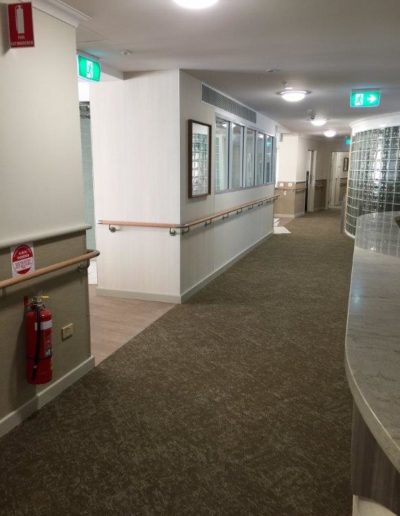

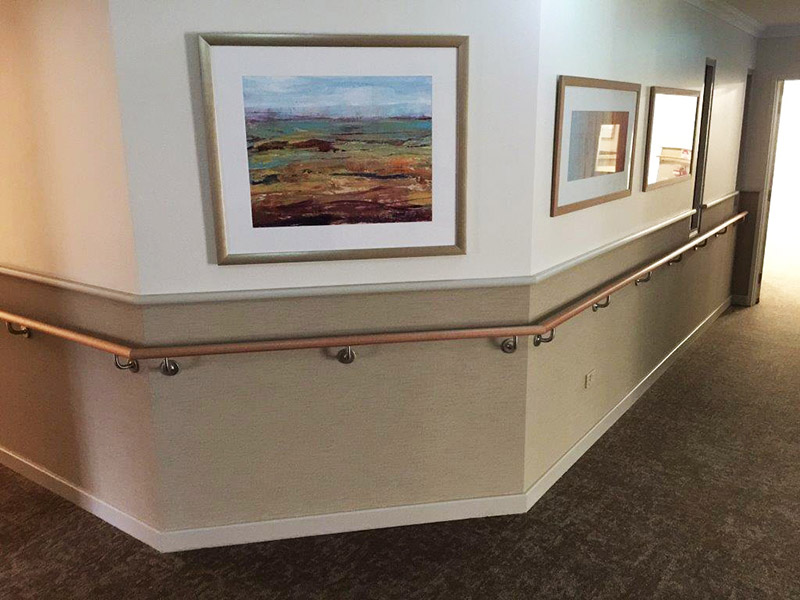

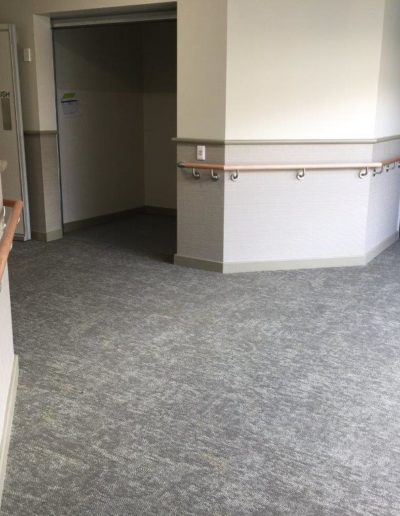

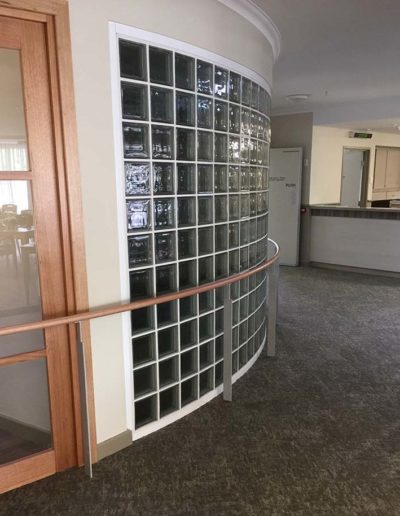

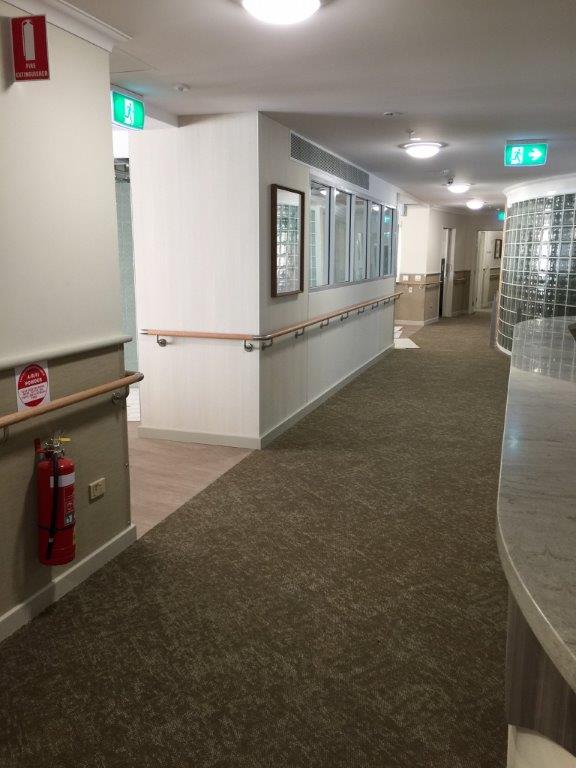

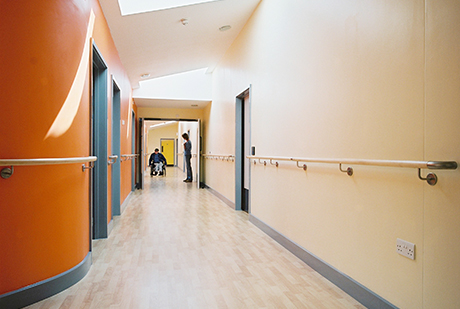

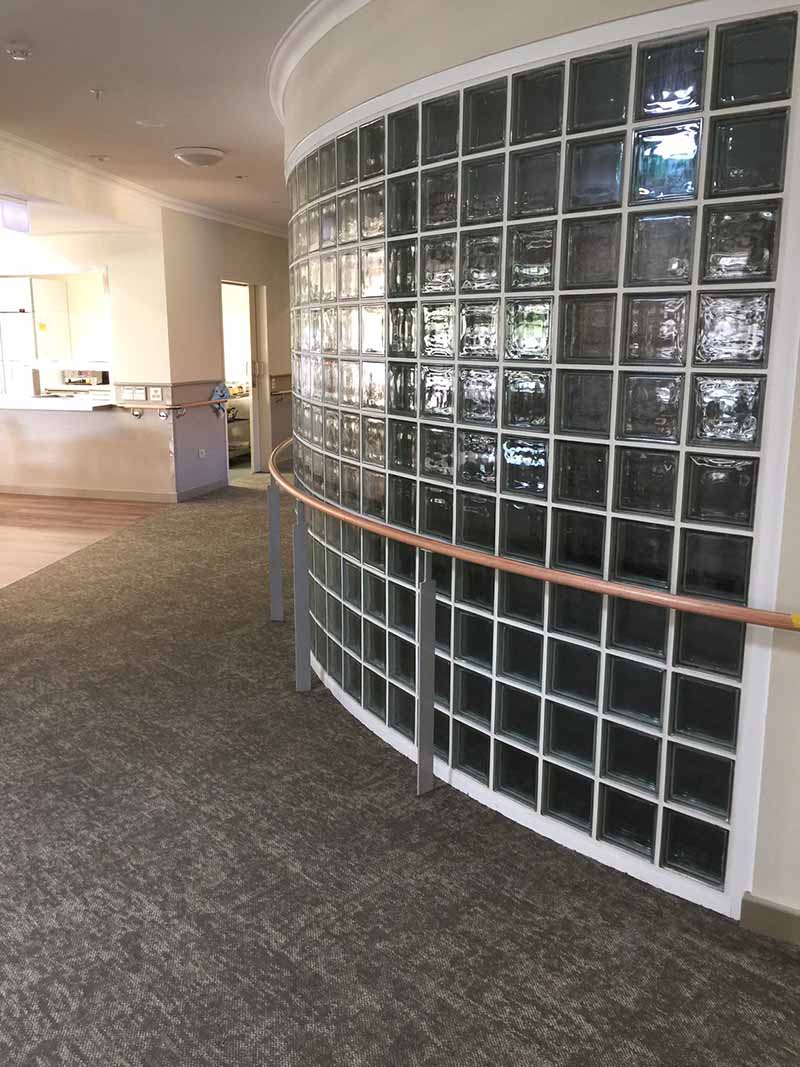

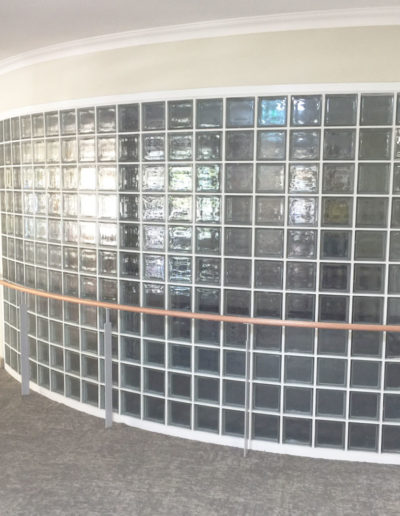

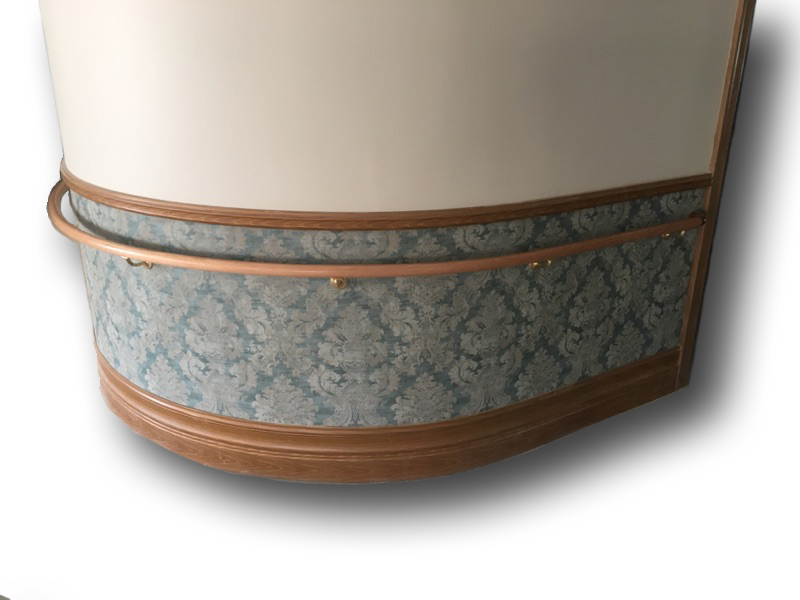

INSPIRATION GALLERY

Renaissance Handrails

PRODUCTS

Renaissance Handrails



AW-10CVB

The solid wood handrail with AW-10CVB or without AW-10C protective accent bumper offers a warm, secure feeling. Available in a variety of standard and custom wood species and finishes. Quick Lock brackets simplify installation.

HRBW-10CN

The HRBW-10CN hand and crash rail offers exceptional wall protection combined with the warmth of a round wooden handrail. The shock absorbing crash rail portion features an internal bumper cushion for added protection. The horizontal accent reveal can coordinate or contrast.

HRBW-20N

The HRBW-20N hand and crash rail features aesthetics and protection in one railing. The oval handrail portion of the HRBW-20N is available in a variety of woods and the crash rail portion in solid colours or chameleon patterns.

HRW-10CV

This handrail offers designers a host of aesthetic options including a solid wood face (HRW-10C), a face with finished grooves (HRW-10CG) or a face with accent inserts (HRW-10CV). Optional Quick Lock bracket available.

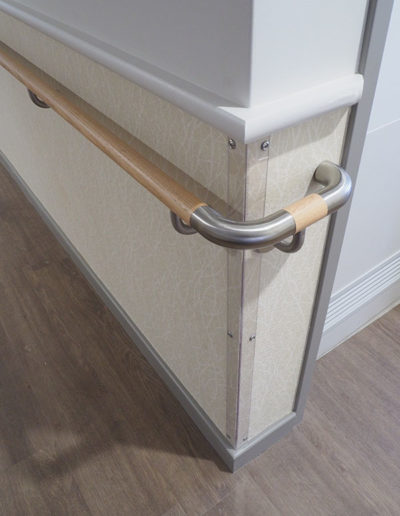

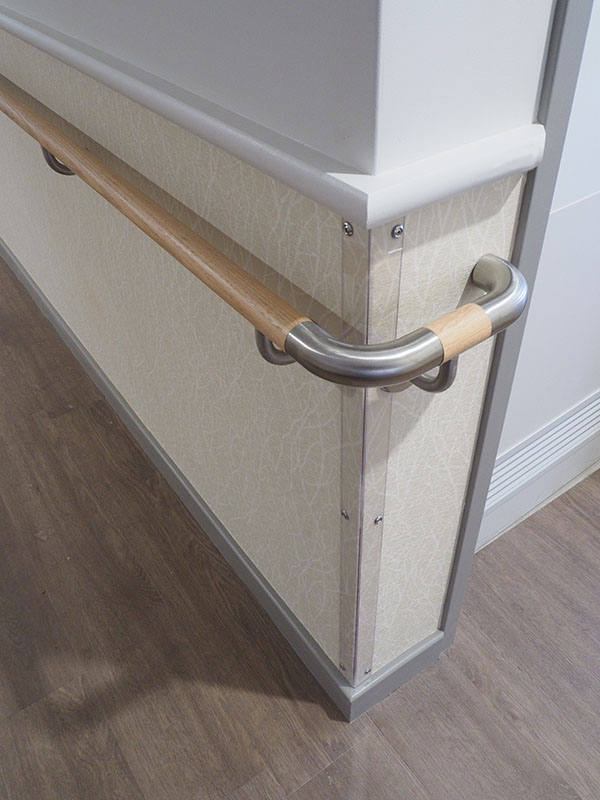

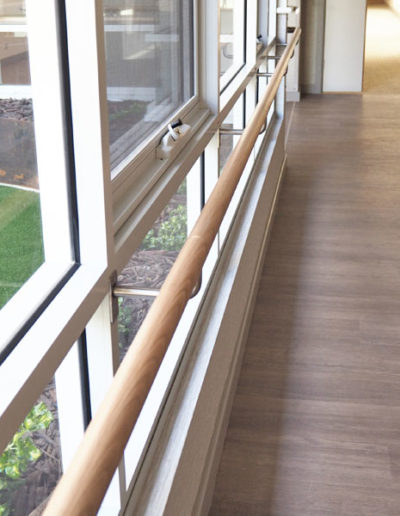

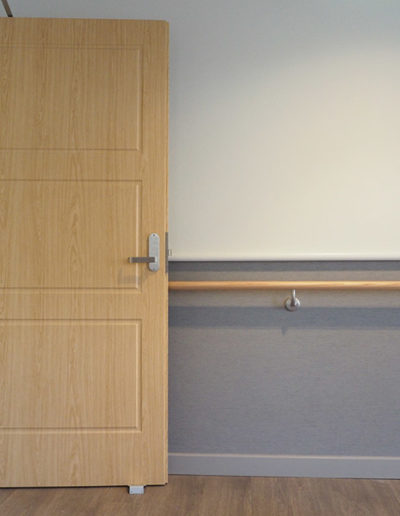

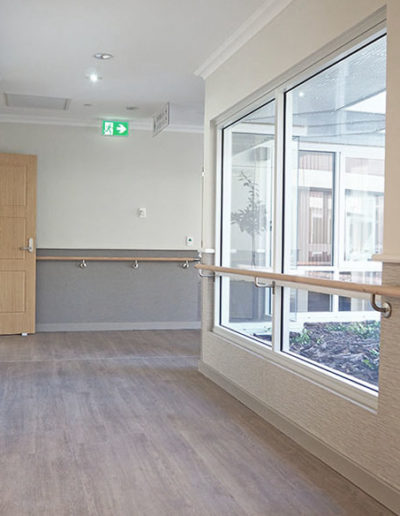

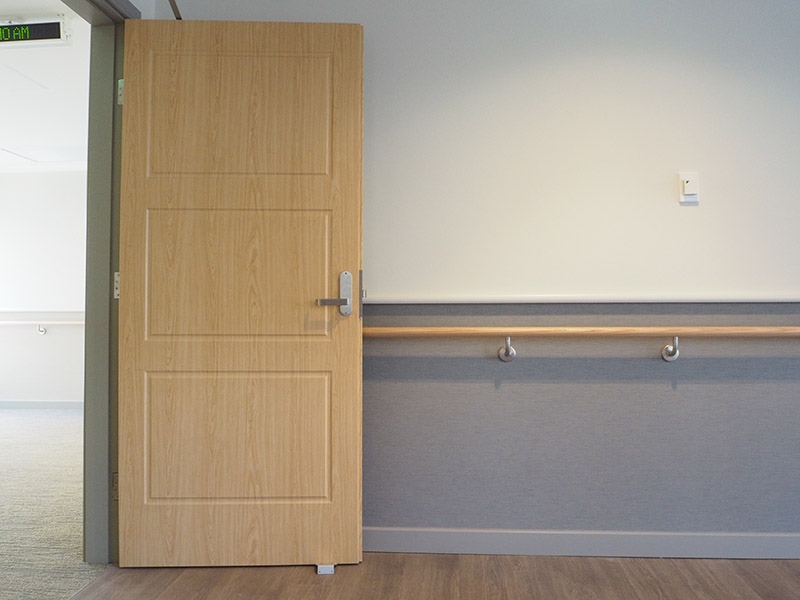

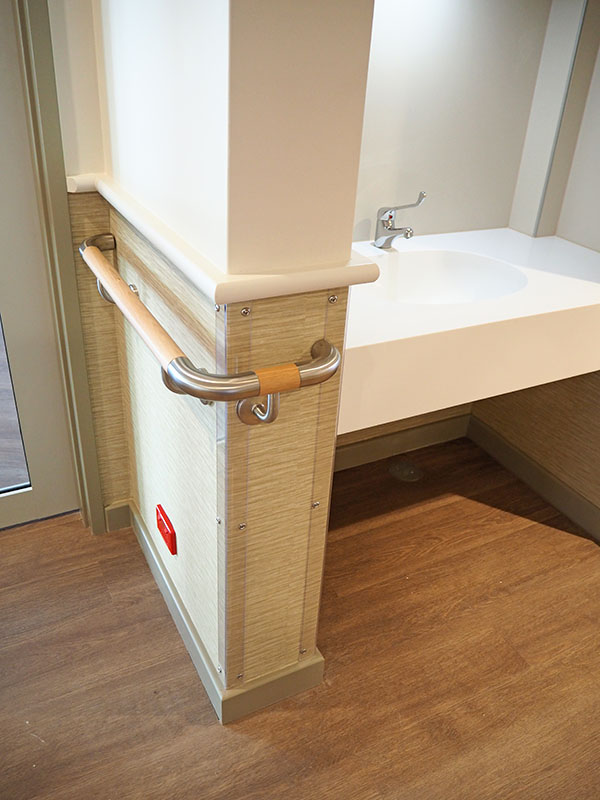

HRWS-6C

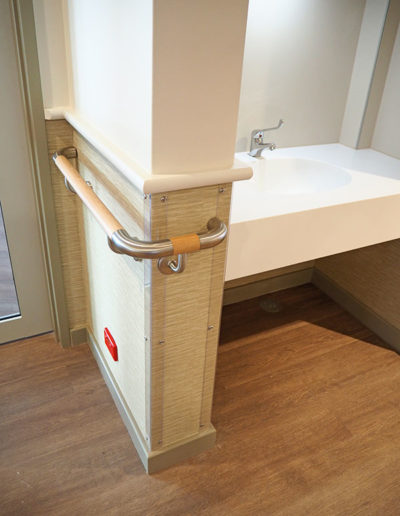

The sleek HRWS-6C handrail combines the warmth of wood with stainless steel end caps and brackets for maximum aesthetics. The stainless steel end caps, brackets and optional splices can be powder coated. Wooden end caps are also available.

PLATFORM HANDRAILS

High performance pedestrian support & wall protection!

A NATURAL AND CONTEMPORARY LOOK:

High Performance Handrails

A collection of robust, high performance handrails, suitable for a broad range of health, public and commercial interiors.

PRODUCTS

Platform Handrails

P-OWM & P-RWM Wood Handrail

P-OWM is a 153mm high rail combining an oval wood handrail with a 102mm powder coated aluminium crash rail. The 162mm high P-RWM features a round wood handrail with a 102mm powder coated aluminium crash rail.

P-OWW, P-OWWV & P-OWWG Wood Handrail

An updated version of our HRW-10CV, the P-OWWV is comprised of an oval wood handrail attached to a wood crash rail with vinyl inserts. This profile is also available with a grooved (P-OWWG) or plain face (P-OWW) crash rail.

P-RASN & P-OASN Acrovyn Handrail

This profile option features a stainless steel crash rail that’s combined with a round (P-RASN) or oval (P-OASN) Acrovyn handrail. Both rails are attached to a dual cantilevered bracket. The bracket component can be powder coated.

P-RAWVN,P-RAWN & P-RAWGN Acrovyn Handrail

This railing combines the durability of a round, Acrovyn handrail with a classic wood crash rail. The classic wood crash rail is available with accent inserts (P-RAWVN), finished grooves (P-RAWGN) or a plain face (P-RAWN).

P-RS & P-OM Stainless Steel Handrail

P-RS is a single round stainless steel handrail 150mm high and P-OM is an oval metal handrail 140mm high with powder coat.

P-RSS & P-RSAN Stainless Steel Handrail

A round stainless steel handrail combined with a variety of crash rail options (stainless P-RSS, Acrovyn P-RSAN, aluminium P-RSM & wood P-RSW). The wood crash rail also available with accent inserts (P-RSWV) or finished grooves (P-RSWG). Components are attached to dual cantilevered brackets. All metal components available in several powder coat finishes.

P-RWS & P-OWS Wood Handrail

This profile option features a stainless steel crash rail that’s combined with a round (P-RWS) or oval (P-OWS) wood handrail. Both rails are attached to a dual cantilevered bracket. The bracket component can be powder coated.

P-RWWV, P-RWW & P-RWWG Wood Handrail

An updated version of our HRW-10CV, the P-RWWV is comprised of a round wood handrail attached to a wood crash rail with accent inserts.

This profile is also available with a grooved (P-RWWG) or plain face (P-RWW) crash rail.

P-OAAN Acrovyn Handrail

This new Acrovyn handrail and crash rail combination works as good as it looks. The P-OAAN oval handrail and 102mm high crash rail are attached to a dual cantilevered bracket. Model P-RAAN features a round handrail.

P-OAMN & P-RAMN Acrovyn Handrail

Combine the practicality of an Acrovyn handrail with the sleekness of our 102mm aluminium crash rail. Specify P-OAMN for an oval handrail or P-RAMN for a round handrail.

P-OAN & P-RAN Acrovyn Handrail

This single line wood handrail is attached to a single cantilevered bracket. Metal components available in 8 powder coat finishes. P-OW features an oval handrail and P-RW features a round one.

P-OAWN Acrovyn Handrail

This handrail combines the durability of an oval, Acrovyn handrail with a classic wood crash rail. The classic wood crash rail is available with accent inserts (P-OAWVN), finished grooves (P-OAWGN) or a plain face (P-OAWN).

P-OMS Aluminium Handrail

The P-OMS handrail features a stainless steel crash rail that’s combined with an aluminium handrail. The aluminium handrail can also be combined with an aluminium crash rail. (P-OMM). Both rails are attached to a dual cantilevered bracket. Metal components can also be powder coated.

P-OMW, P-OMWV & P-OMWG Aluminium Handrail

This profile combines an oval aluminium handrail with a wood crash rail. The handrail is offered in several powder coat finishes. The wood is offered in a variety of standard and custom wood species and finishes, and it’s available with vinyl inserts (P-OMWV), finished grooves (P-OMWG) or a smooth face (P-OMW).

P-OW & P-RW Wood Handrail

This single line wood handrail is attached to a single cantilevered bracket. Metal components available in 8 powder coat finishes. P-OW features an oval handrail and P-RW features a round one.

P-OWAN,P-RWAN & P-OMAN Wood Handrail

The shock absorbing Acrovyn crash rail of model P-OWAN protects not only the wall behind it, but also the oval wood handrail above it. Model P-RWAN features a round wood handrail and model P-OMAN features an oval metal handrail.
