Expansion Joint Covers for Floors

CHOOSE A TYPE OF FLOOR EXPANSION JOINT COVER:

Gasketed EJCs for Floors

Minimal exposed surface & sealable gasket for infection control.

Metal EJCs for Floors

Very little maintenance required while offering up to ±100mm of movement.

Cover Strips for Floors

A simple & economical solution ideal for low traffic areas.

Restofit System for Floors

Refreshing options for worn-out and broken expansion joint covers.

GASKETED EXPANSION JOINT COVERS:
Floors

GASKETED EJCs - Flooring

Gasketed floor joint covers have a minimal exposed surface, with a sealable gasket for infection control. These features make gasketed EJCs ideal for applications where hygiene is paramount, such as healthcare, kitchen operations and food retail. Available in surface & recess mounted options, these expansion joint covers can be used in conjunction with timber floors, vinyl, carpet, stone, ceramic & terrazzo tiles. To increase the visual blending and create an even more seamless appearance, it’s possible to embed the surrounding floor surface into the centre plate.

IMAGE GALLERY:

dual-gasket-seismic-floor-joint-covers-03

gasketed-expansion-joint-covers-for-flooring-1

gasketed-expansion-joint-covers-for-flooring-2

gasketed-expansion-joint-covers-for-flooring-4

gasketed-expansion-joint-covers-for-flooring-5

gasketed-expansion-joint-covers-for-flooring-6

GASKETED EJCs

Watch How they Work:

SINGLE GASKET JOINT COVER

DUAL GASKET JOINT COVER

TECHNICAL PRODUCT INFORMATION

Gasketed Expansion Joint Covers

GFS Series

Surface mounted, incorporating a single gasket. Offers ease of installation & multi-directional movement:

Joint Width: up to 51mm
Horizontal: up to ±15mm
Vertical: up to ±2mm
Lateral: up to ±2mm
Load Capability: 250kg point load
2 Floor Models (GFS)
2 Floor to Wall Models (GFSW)

GFST Series

Suitable for surface retrofit where tiles are used. Sealed with one durometer gasket at installation.

Outer harder materials for stronger, more secure attachment to aluminum extrusions.
Inner softer material used to allow for thermal movements
Sizes: 25.5mm to 51mm

GFPS Series

Surface mounted joint covers featuring exposed aluminium frames which are recessed to take a 5mm thick carpet or vinyl floor finish.

Joint Width: up to 50mm
Horizontal: up to ±10mm
Vertical: up to ±3mm
Lateral: up to ±3mm
Load Capability: 250kg point load
3 Floor Models (GFPS)
3 Floor to Wall Models (GFpSW)

GFT Series

Recess mounted, single gasketed covers available in four frame depths to suit different floor finishes & situations.

This flush floor cover is ideal for applications where minimal visual impact is preferred. It is sealed with one dual durometer gasket installation.

DGTP & GTP Series

This recess mounted, double gasketed EJC is designed for applications with large movement requirements. Deeper models can be installed in scenarios where varying joint widths exist (up to 110mm wide).

Joint Width: up to 110mm
Horizontal: up to ±38mm
Vertical: up to ±15mm
Lateral: up to ±8mm
Load Capability: 250kg point load
Aluminium sections (stock length): 3m
Gaskets (stock length): cut to suit from (max) 32m rolls

DGTR & GTR Series

The 3.2mm recessed centre plate is designed to accommodate bonded carpet, vinyl flooring or other suitable inserts. Maintains movement capacity even when installed over a range of joint widths, or uneven joint widths.

Joint Width: up to 110mm
Horizontal: up to ±38mm
Vertical: up to ±15mm
Lateral: up to ±8mm
Load Capability: 250kg point load
Aluminium sections (stock length): 3m
Gaskets (stock length): cut to suit from (max) 32m rolls

SGP Series

Designed for large, seismic joints in substantial commercial projects with regular pedestrian traffic. Hygienic, co-extruded gaskets offer added thermal movement & water resistance.

Joint Width: up to 250mm
Horizontal: up to ±25mm
Vertical: up to ±3mm
Lateral: up to ±8mm
Flush, sleek, low profile cover
An all-round cover for large joints

GFT Series

This EJC enables excellent concealment of large joints due to the recessed central plate that is designed to incorporate carpet or vinyl flooring.

16mm deep
250kg point load
suitable for 125-250mm joint widths
interior applications only

METAL EXPANSION JOINT COVERS:
Floors

METAL EJCs - Flooring

Metal expansion joint covers are generally intended for larger floor joints of up to 150mm wide. They are designed for a high movement range of up to ±100mm. In cases where there is nothing within the joint, such as a fire or moisture barrier, then some metal floor covers are able to close up to 100%.

Metal EJCs benefit from a durable construction with very few (if any) perishable parts. This translates to a system that requires very little maintenance.

IMAGE GALLERY:

3metal-expansion-joint-covers-for-floors-3

3metal-expansion-joint-covers-for-floors-4

metal-expansion-joint-covers-for-floors-2

***WE CANNOT USE THE NAME OF THE FACILITY IN ANY PUBLICATIONS***

metal-expansion-joint-covers-for-floors-1

METAL EJCs

Watch How they Work:

APF SERIES

ALS SERIES

SJPF SERIES

TECHNICAL PRODUCT INFORMATION

Metal Expansion Joint Covers

APF Series

This recess mounted EJC is Heavy Duty! It can withstand rolling loads of forklifts & trucks (read more below) and is highly resistant to distortion & wear. Five frame depths to accommodate a variety of situations. Mix & match where necessary. Serrated surfaces provide anti-slip finish :

Joint Width: up to 120mm
Horizontal: up to ±30
Lateral: ∞ (Infinite)
Load Capability: 1000kg point load

APF Rolling Load Capacities

Forklifts with full pneumatic tyres of a permissible total weight of 7 tonnes (tyre adhesion area 200 x 200mm)
Trucks with pneumatic tyres of a permissible total weight of 30 tonnes
Vehicles and goods handling trucks with tyres of hard plastics. The permissible load dependent on tyre width is 6.5kg per every mm of tyre width.

ALS Series

Standard duty, aluminium EJC – recess mounted. Suited to tamper-proof applications where low maintenance is also required. Offering up to 100% horizontal movement of the joint width (up to 100mm wide).

Joint Width: up to 100mm
Horizontal: up to ±75mm
Lateral: up to ∞ (Infinite)
Load Capability: 250kg point load

ALR Series

Standard duty, recess mounted EJC with a 3mm recessed side frame to accommodate vinyl floor finish. Offers up to 100% horizontal movement of the joint width.

Joint Width: up to 100mm
Horizontal: up to ±75mm
Lateral: ∞ (Infinite)
Load Capability: 250kg point load

SJP Series

A sleek, seismic, all metal, clear-cut cover designed for large expansion joints. The cover’s locking mechanism disengages during movement activity, allowing movement in all directions, whilst remaining flush to the floor.

Joint Width: up to 250mm
Horizontal: up to ±125mm

SJ Series

Designed for conditions requiring heavy duty (2000Lb/907Kg.) point load. A bespoke model incorporating a stainless steel, flush fitting cover plate.

A recess mounted EJC that offers a variety of movements, depending on configuration.

SSR Series

A large seismic EJC that’s practically invisible. Handles multi-directional movement & is suitable for joint widths up to 250mm (interior or exterior areas). Can incorporate a variety of floor finishes and has built-in edge protection to eliminate floor surface clipping.

Joint Width: up to 250mm
Horizontal: up to ±38mm
Vertical: up to ±25mm

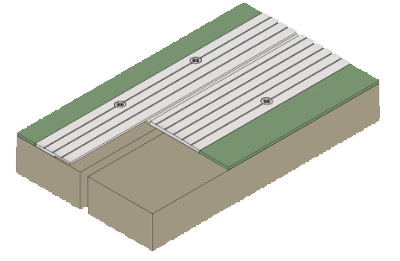

CSFM Series

This surface mounted EJC is designed to accommodate 3mm vinyl floors & carpet tiles. CSFM is a minimal movement joint cover with a natural anodise of 25UM coating with aluminium alloy 6061-T6.

KLP Series

KLP can withstand high rolling loads, in both interior & exterior zones. It has a clean, sleek finish with a cover design that permits significant horizontal movement in the floor slab, while the turn bars keep the cover plate centred at all times. Maintenance is minimised due to the flush aluminium design that prevents dirt from entering the joints.

COVER STRIPS:
Floors

COVER STRIPS - Flooring

Cover strips offer a simple and economical way to cover a floor expansion joint. Cover strips generally just push into existing joints, or are screwed in on one side of the joint.

The CS range of cover strips can cover joints up to 100mm. The movement range depends on the type of cover chosen.

TECHNICAL PRODUCT INFORMATION

Cover Strips

W Series (floor)

Easy to install system of rigid aluminium strips for covering floor expansion joints. Strips are supplied in 3m lengths with all the necessary fastening accessories.

Materials, Colours & Finishes

Aluminium cover strips are supplied with a natural anodised finish as standard, or can be powder coated upon request (subject to minimum order quantities).

Fixings

Installation using clips (supplied by CS) at 300mm centres
Installation using screw fixings (by others, to suit substrate) at 275mm centres and to achieve minimum 40mm embedment

RESTOFIT EXPANSION JOINT SYSTEMS:
Floors

Restofit EJCs - Flooring

The Restofit Expansion Joint System is the ideal way to refresh broken or degraded expansion joint covers. Easy installation translates to minimal down-time and, in-turn, helps to minimize the costs associated with new and retrofit applications.

Restofit models are suitable for a variety of floor finishes and require little maintenance.

TECHNICAL PRODUCT INFORMATION

Restofit Expansion Joint Systems

RFA

This extremely low maintenance, all-metal surface mounted cover is resistant to rolling loads, wear & distortion. Serrations create a slip resistant surface and the model is suitable for both interior and exterior use.

The unique interlocking cover permits horizontal movement in the floor slab in addition to some vertical deflection, however RFA is intended for applications where minimal movement is expected.

RFB

This cover is designed for movement up to 100%. The self-centering aluminium cover plate allows for thermal movement and limited seismic movement. The cover is surface mounted and is designed for interior, new or retrofit applications.

RFC

Designed for interior applications, RCF is suitable for new and retrofit applications. The self-centering cover plate temporarily displaces to slide over the floor surface during seismic movement, but remains flush with the flooring surface during thermal movement.

RFD

RFD offers minimal installation time and requires little maintenance. The surface mounted aluminium cover is resistant to rolling loads, wear & distortion. RFD accommodates vertical offsets and a gradual taper minimizes the bump.

INSPIRATION GALLERY

CS Expansion Joint Covers for Floors

Download the CS® Expansion Joint Brochures
